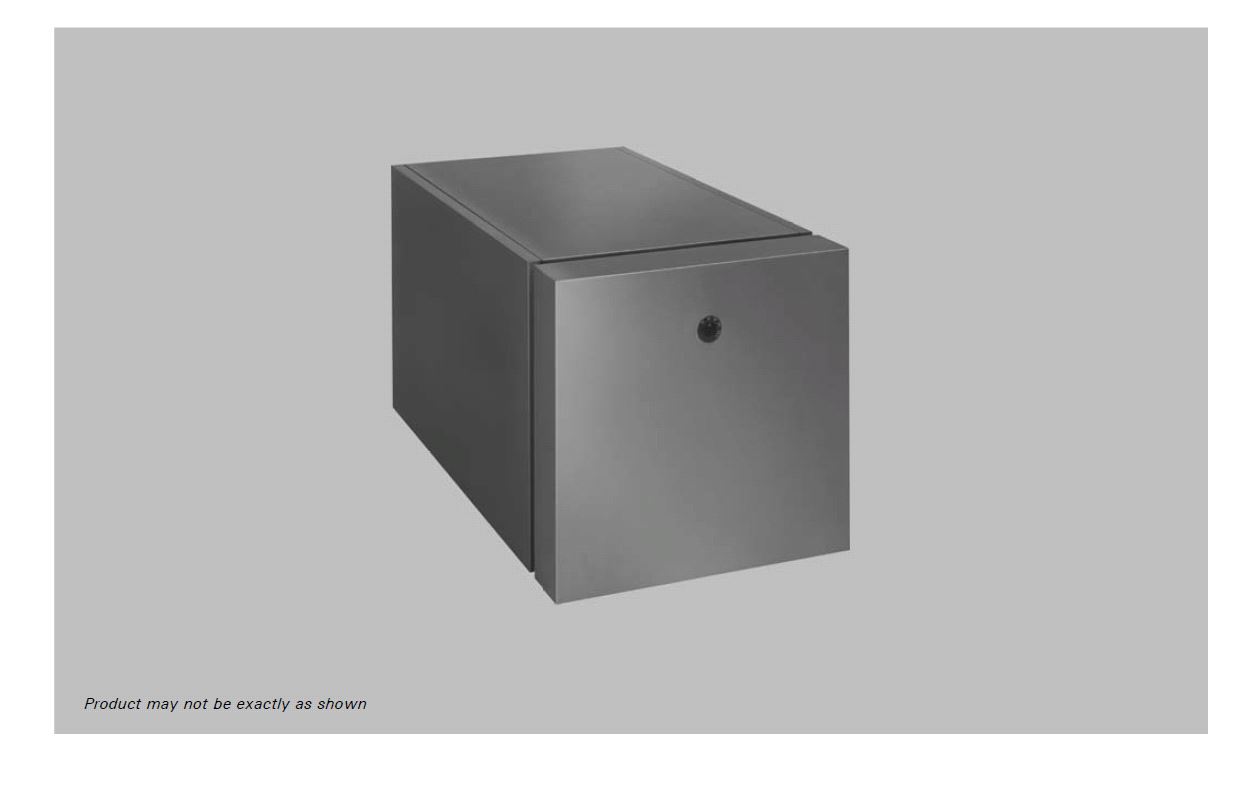

Viessmann EHA-92 Z014849 Vitocell 300-H 92 Gallon Single Coil Indirect Water Heater
Item SKU - Z014849 by Viessmann
EDP - 1166274
Please Login for Pricing
Product Description
Overview
Horizontal Indirect Hot Water Tank - SA 240-316 Ti Stainless Steel Tank
Features
- One Stainless Steel Heat Exchanger Coil - HCFC Foamed in place insulation - One thermometer
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Tank Size (Gallons)
92
Heat Exchanger Material
Stainless Steel
Tank Material
Stainless Steel
Heat Exchanger Style
Coil
Number of Heat Exchangers
1
Height (inches)
31
Diameter/Width (inches)
32.75
Boiler Water Connection
1 1/4 Male
Water Inlet Size
1 1/4 Male
Hot Water Outlet Size
1 1/4 Male
Input Water Temperature
180 degrees
Domestic Water Temperature
115 degrees
First Hour Rating (GPH)
239
Relief Valve
Yes
Standby Heat Loss per Hour
6.0
Approximate Weight (pounds)
379
Viessmann EHA-92 Z014849 Vitocell 300-H 92 Gallon Single Coil Indirect Water Heater
Item SKU - Z014849 by Viessmann (EDP 1166274)
Stock / Price Information
Please Login for Pricing
Product Description
Overview
Horizontal Indirect Hot Water Tank - SA 240-316 Ti Stainless Steel Tank
Features
- One Stainless Steel Heat Exchanger Coil - HCFC Foamed in place insulation - One thermometer
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
| Tank Size (Gallons) |
|
|
| Heat Exchanger Material |
|
|
| Tank Material |
|
|
| Heat Exchanger Style |
|
|
| Number of Heat Exchangers |
|
|
| Height (inches) |
|
|
| Diameter/Width (inches) |
|
|
| Boiler Water Connection |
|
|
| Water Inlet Size |
|
|
| Hot Water Outlet Size |
|
|
| Input Water Temperature |
|
|
| Domestic Water Temperature |
|
|
| First Hour Rating (GPH) |
|
|
| Relief Valve |
|
|
| Standby Heat Loss per Hour |
|
|
| Approximate Weight (pounds) |
|
