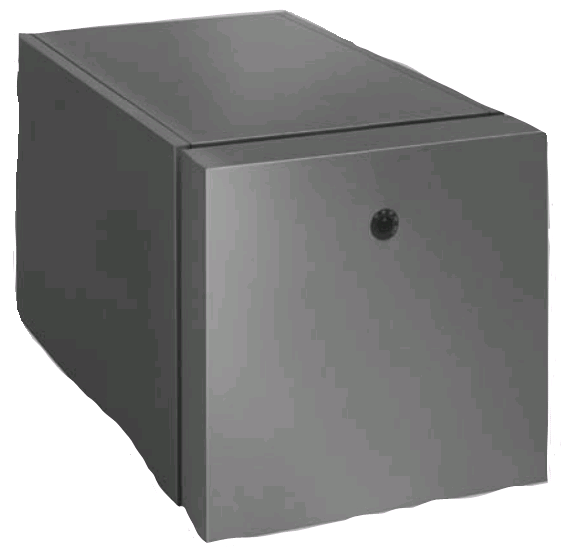

Viessmann EHA-92 7134 403 Vitocell 300-H 92 Gallon Indirect Water Heater Tank Only
Item SKU - 7571483 by Viessmann
EDP - 721151
Please Login for Pricing
Product Description
Overview
Rectangular Indirect Hot Water Tank - SA 240-316 Ti Stainless Steel Tank
Features
- Stainless Steel Heat Exchanger Coil Extends to the Bottom of the Tank
- HCFC Free Foam Insulation
- Non-Finned Stainless Steel Heat Exchanger Coil
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Tank Size (Gallons)
92
Heat Exchanger Material
Stainless Steel
Tank Material
Stainless Steel
Heat Exchanger Style
Coil
Number of Heat Exchangers
1
Height (inches)
31
Diameter/Width (inches)
32.75
Boiler Water Connection
1 1/4 Male
Water Inlet Size
1 1/4 Male
Hot Water Outlet Size
1 1/4 Male
Boiler Connection Location
Side
Input Water Temperature
180 degrees
Domestic Water Temperature
115 degrees
First Hour Rating (GPH)
174
Continuous Flow (GPH)
22.0
Relief Valve
No
Standby Heat Loss per Hour
6.0
Weight (pounds)
379
