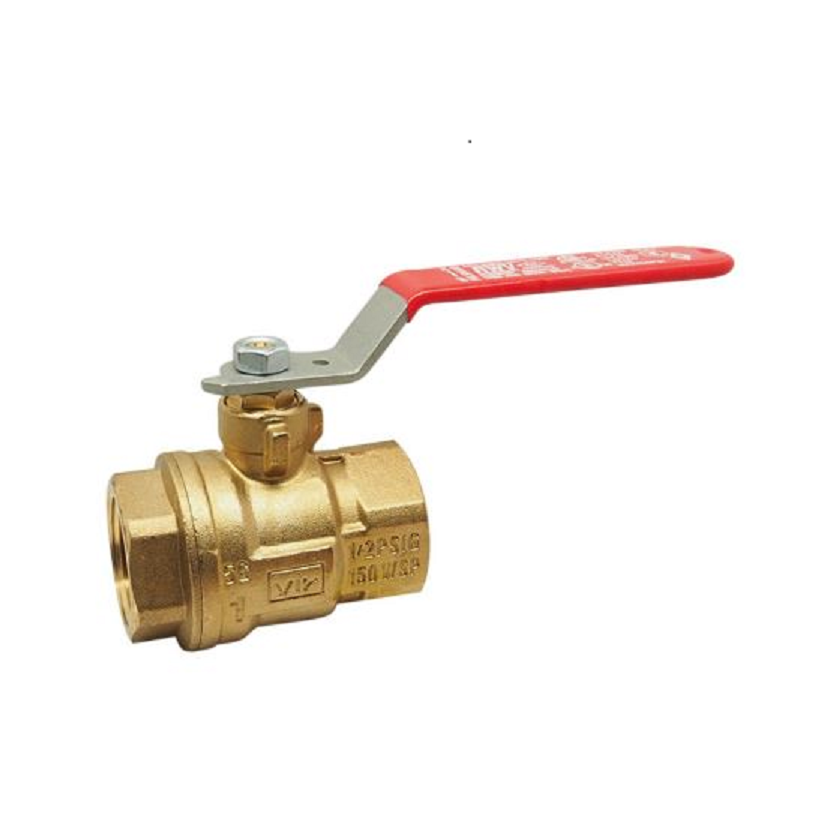

Red and White 5044AB-1/2 Lead Free Brass 1/2 inch Female x 1/2 inch Female Full Port Ball Valve
Item SKU - 5044AB 1/2 by Red and White
EDP - 1021804
Please Login for Pricing
Product Description
Red handle - Two piece body - Blow out proof stem - Adjustable packing - Virgin PTFE seats - Chrome plated ball
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
Lead Free Brass
Lead Free
Yes
P1 Size
1/2
P1 Connection
Female Pipe Thread
P2 Size
1/2
P2 Connection
Female Pipe Thread
WOG Pressure rating
600 PSIG
Steam Rating
150 PSIG
Body Style
2 piece
Bore
Full Port
Approval
CSA
NSF
FM
UL
ANSI
Approximate Height
2.45
Approximate Length
.75
Approximate Weight (pounds)
.56
Approximate Width
2.13
Red and White 5044AB-1/2 Lead Free Brass 1/2 inch Female x 1/2 inch Female Full Port Ball Valve
Item SKU - 5044AB 1/2 by Red and White (EDP 1021804)
Stock / Price Information
Please Login for Pricing
Product Description
Red handle - Two piece body - Blow out proof stem - Adjustable packing - Virgin PTFE seats - Chrome plated ball
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
| Material |
|
|||||
| Lead Free |
|
|||||
| P1 Size |
|
|||||
| P1 Connection |
|
|||||
| P2 Size |
|
|||||
| P2 Connection |
|
|||||
| WOG Pressure rating |
|
|||||
| Steam Rating |
|
|||||
| Body Style |
|
|||||
| Bore |
|
|||||
| Approval |
|
|||||
| Approximate Height |
|
|||||
| Approximate Length |
|
|||||
| Approximate Weight (pounds) |
|
|||||
| Approximate Width |
|
