Overview

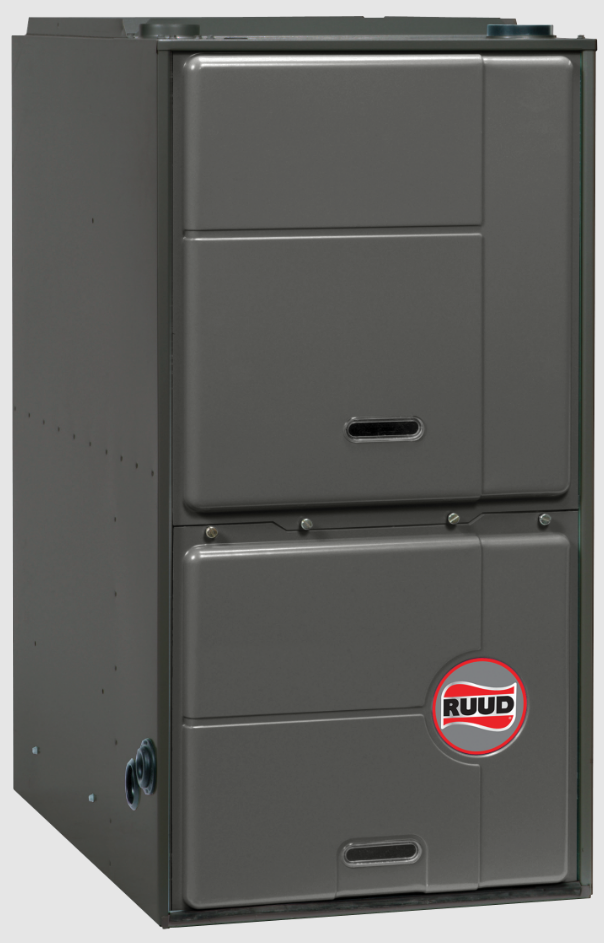

The Ruud Ultra Series 90 Plus High Efficiency upflow gas furnaces are designed for utility rooms, closets or alcoves. Because of the furnace's low profile 34 inch [864 mm] height, the upflow model installed vertically can also be used to satisfy most applications that traditionally call for a horizontal furnace.

Features

• This is an upflow only furnace
• Pre-painted galvanized steel cabinet
• Comfort Control Two System provides over 28 on board diagnostics and fault history codes by detecting system and electrical problems. "Call for service" alert notifications is sent to the thermostat to alert the homeowner of required service
• Can be converted to LP with an LP conversion kit (not included)
• Up to 3 tons of air conditioning can be added to this furnace
• Serial Communication Enhanced: When installed with a Serial Communicating Condenser and user interface control 500 series thermostat, this unit offers 4 or 2 wire installation, auto-configuration and diagnostic messaging with full communicating capability

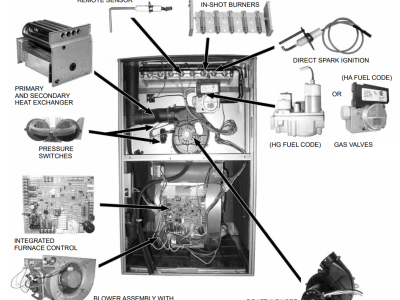

• Heat exchanger is constructed of stainless steel for maximum corrosion resistance
• Insulated blower compartment
• When used with a modulating or communicating thermostat, modulation rate is between 40% and 100% of total capacity
• When used with a two stage thermostat, furnace operates between 40% and 65% on the first stage, then 100% on the second stage
• When used with a single stage thermostat, the furnace functions as a three stage furnace operating at 40%, 65% and 100% of total capacity
• Low speed constant fan
• Left or right side gas, electrical and condensate connections
• Dual seven segment LED for system diagnostics
• Diagnostic history for troubleshooting
• Direct spark ignition with remote sense
