Overview

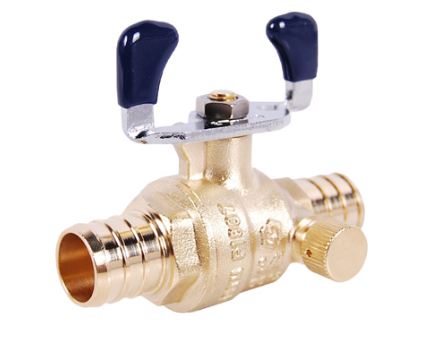

Legend has the most expansive offering of compact, durable and labor saving full port PEX ball valves. All Legend PEX ball valves feature the dual O-ring stem design that requires no packing nut removing the potential for call backs. The valves are constructed of binary brass to meet all no lead requirements. Three models are configurations based on the T-1001 model which feature dual Viton(R) O-rings, a corrosion resistant Dacromet(R) coated steel handle, and are constructed of no lead binary brass. These include the T-806NL and T-805NL. The T-2005NL, T-2006NL, T-2008NL, & T-1960NL are based on the T-2000NL Full Port Ball Valve. These PEX models features dual EPDM O-rings, zinc plated steel handle and are constructed of binary brass which are also dezincification resistant. All valves are third party certified no lead ANSI/NSF-61-G, NSF or IAPMO.

Features

• Cold Working Pressure (CWP): 400 PSI
• PEX barb ends comply with ASTM F1807
• (Model T-1960) PEX barb ends comply with ASTM F-1960
• ANSI/ASTM B1.20.1 Male iron pipe threads
• ANSI/ASTM B16.18 Sweat
