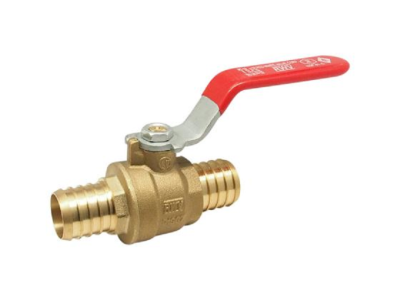

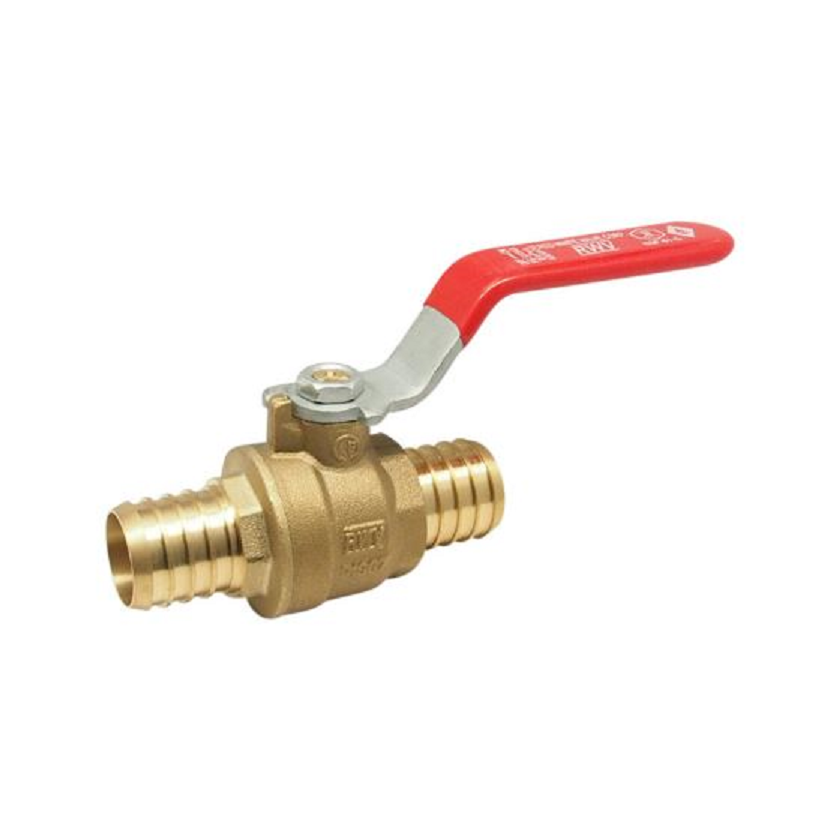

Red and White 5009AB-1/2 Lead Free Brass 1/2 inch PEX x 1/2 inch PEX Full Port Ball Valve
Item SKU - 5009AB 1/2 by Red and White
EDP - 1037055
Please Login for Pricing
Product Description
Red handle - For Viega F1807 PEX - Two piece body - Blow out proof stem - Double NBR "O" ring packing - Virgin PTFE seats - Chrome plated ball
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Material
Lead Free Brass
Lead Free
Yes
P1 Size
1/2
P1 Connection
Pex
P2 Size
1/2
P2 Connection
Pex
WOG Pressure rating
400 PSIG
Body Style
2 piece
Bore
Full Port
Approval
CSA
NSF
ANSI
Approximate Height
3.49
Approximate Length
.75
Approximate Weight (pounds)
.24
Approximate Width
2.31
