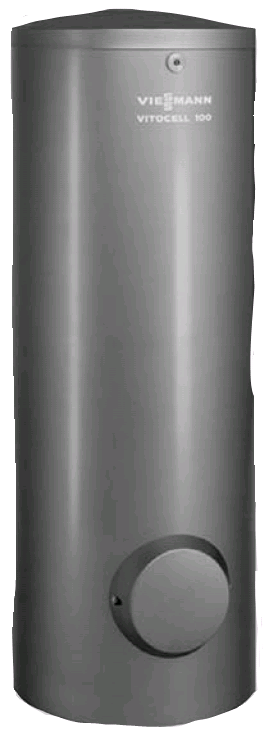

Viessmann CVA-79 7134 162 Vitocell 100-V 79 Gallon Indirect Water Heater
Item SKU - Z014838 by Viessmann
EDP - 690507
Please Login for Pricing
Product Description
Overview
Indirect Hot Water Tank - Steel Tank with Ceraprotect Enamel Coating
Features
- Magnesium Anode Rod - Heat Exchanger Coil Extends to the Bottom of the Tank
- HCFC Free Foam Insulation
- Non-Finned Tubular Steel Heat Exchanger Coil
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Tank Size (Gallons)
79
Heat Exchanger Material
Steel
Tank Material
Enamel Coated Steel
Heat Exchanger Style
Coil
Number of Heat Exchangers
1
Height (inches)
68.25
Diameter/Width (inches)
26.25
Boiler Water Connection
1 Male
Water Inlet Size
1 Male
Hot Water Outlet Size
1 Male
Boiler Connection Location
Side
Input Water Temperature
180 degrees
Domestic Water Temperature
115 degrees
First Hour Rating (GPH)
150
Continuous Flow (GPH)
13.2
Relief Valve
No
Standby Heat Loss per Hour
5.6
Weight (pounds)
333
