Overview

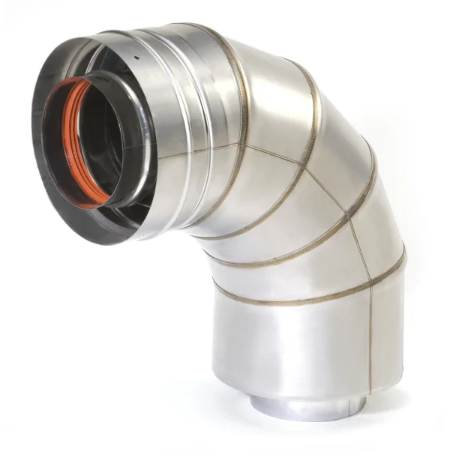

The Heatfab Saf-T Vent SC is a concentric vent system designed for zero clearance installation in residential and light commercial applications. It is approved for use on ANSI Category I, II, III, and IV Gas Burning Appliances, and Direct Vent or Sealed Combustion Appliances as approved by the appliance manufacturer. The Saf-T Vent SC factory built Special Gas Vent and Gas Vent Connector is Tested and Listed by Underwriters Laboratories to UL 1738/ULC S636 and is for use with listed natural gas or propane burning equipment. The system is to be installed and sealed per the manufacturers' instructions so the flue gas conduit is gas tight, preventing leakage of products of combustion into a building. Saf-T Vent SC is a double wall product that consists of a flue gas conduit fabricated from AL 29-4C, which is ideal for use with modern gas burning equipment that may produce excessive amounts of condensation in the vent. The outer jacket of the system is constructed from stainless steel with a space of approximately one inch between the flue gas conduit and the jacket.

Features

• Factory built for high quality, durability and long life
• Concentric venting speeds installation with exhaust and intake through one vent that requires only one wall penetration
• 5" outside diameter
• Component connection system engineered with an overlapping joint design to keep acidic condensate away from the seal
• Factory installed integral seal
• Up to 550 degree maximum temperature rating
