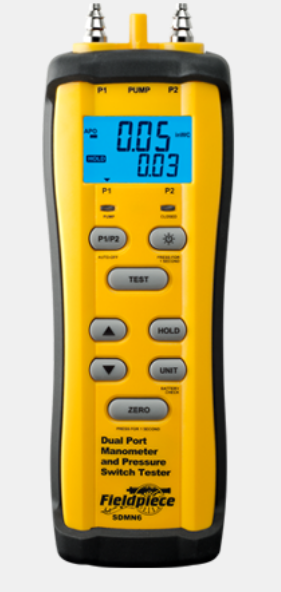

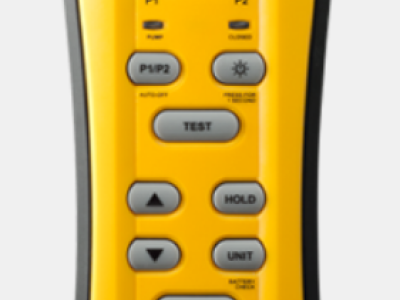

Fieldpiece SDMN6 Digital Dual Port Manometer with Pressure Switch Tester
Item SKU - SDMN6 by Fieldpiece
EDP - 1257601
Please Login for Pricing
Product Description
Overview
The Dual Port Manometer has the ranges to measure gas pressure and the resolution needed to measure static pressure. Ideal for HVACR field service technicians, the SDMN6 can determine if the gas pressure coming into the house or out of the regulator are correct. The SDMN6 measures gas pressure up to 60 inch water column (WC) with a resolution of 0.1 inch WC. In addition, the unit measures both positive and negative pressure, which is used for measurement on vacuum control lines. The unit will take differential pressure readings and display the difference between P1 and P2 at all times in the lower right corner of the easy to read LCD. Four different measurement scales can be used: inches of water column, millimeters of water column, mBar, and PSI. The SDMN6 also has a zero adjust to zero out the meter in different ambient pressures. It has a hold button to hold the currently displayed reading. The auto power off function conserves battery life, but can be disabled if desired. In the static pressure mode, the unit can measure up to 2 inch WC with resolution to 0.010 inch WC, which enables a technician to measure small differences in air (or static) pressure.
Features
- Power: 9 volt battery - 200 hours battery life with manometer only with backlight off
- Auto power off: 15 minutes
- Units of measure: inch WC, mm WC, milibar or PSI
- Maximum pressure: 900 inch WC (17.4 PSI) will damage sensors
- Compatible media: Dry, non-corrosive gases
- Pressure ports: 2 connectors (P1, P2) for flexible tubing (4.5mm to 8mm ID)
- Pump port: 1 connector (pump) for 5 mm ID flexible tubing
- Lead jacks: 2 banana plug jacks for testing open / close switch status
- Accuracy: Plus / minus 1.5% FS stated accuracy at 0 to 50 degrees
- Operating environment: 32 degrees to 118 degrees at less than 80% relative humidity

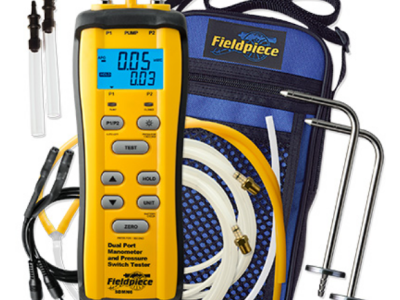

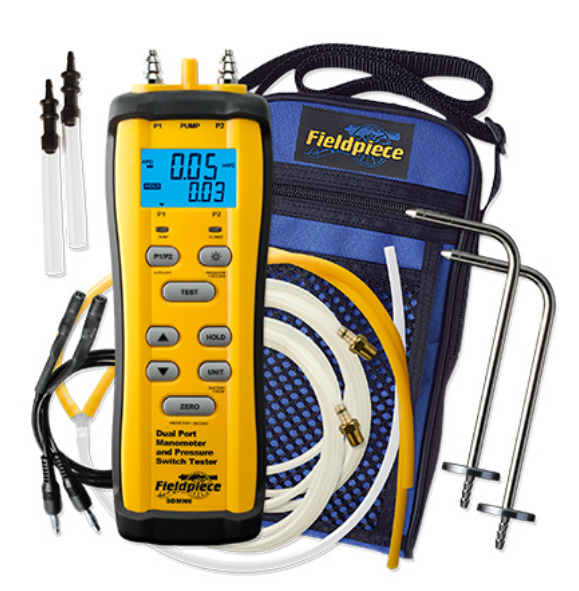

What's Included
- (1) - Dual port manometer and pressure switch tester (SDMN6)
- (2) - Static pressure probes (ASP2s)
- (2) - Pressure tubes (RMA316)
- (2) - Quick connect leads
- (2) - Hoses and 1 - "Y" splitter
- (2) - Hoses with brass screw fittings
- (1) - Four pocket carrying case (ANC1)
Documentation
