Overview

The revolutionary new JL3KM2 Job Link System Manometer probes give HVACR pros the freedom to work the way they want to - unrestricted by hoses, so technicians get readings from optimal locations on every system, every time. Short hose length keeps things neat, and independent sensors allow for direct placement on test ports. Measure between zones without snaking a hose past the door. Dial in gas pressure of a furnace. Optimize total external static pressure of equipment. Pinpoint duct leaks and restrictions. Increase comfort and do more. Unlike traditional dual port manometers, Fieldpiece's revolutionary untethered design lets contractors place each probe independently in exact locations, to see up to 8 reliable pressure readings at once - all fed directly into the Fieldpiece Job Link app for maximum convenience. Measure and view real time return static, supply static, and total external static pressure all at once from up to 1000 feet away. Get single, dual or multiport measurements with the freedom to work the way technician like, from anywhere on the job site. They now have the versatility they've always needed.

Features

• Minimum device requirements: BLE 4.0 devices running Apple iOS7.0 or Android 5.0
• Compatible media: Dry, non-corrosive gas
• Pressure port: Tube connector for flexible tubing (4.5 to 8mm ID)
• Units of measure: inWC, mmWC, mbar, PSI and Pa
• Acccuracy: Plus / Minus 1.5%
• Battery life: 150 hours of typical use - LED slow blinks red when battery replacement is needed
• Auto power off turns the unit off after 2 hours (can be disabled)
• Wireless range: 1000 feet line of sight: distance decreases through obstructions
• Operating environment: -10 degrees to 122 degrees at less than 75% relative humidity
• Battery type: 2 - AAA batteries
• Radio Frequency: 2.4 GHz

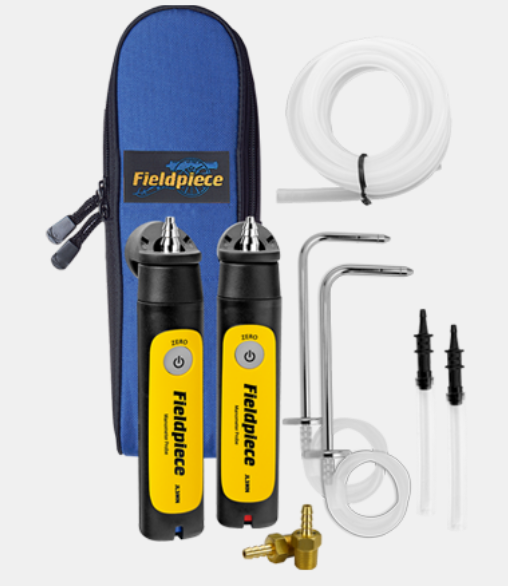

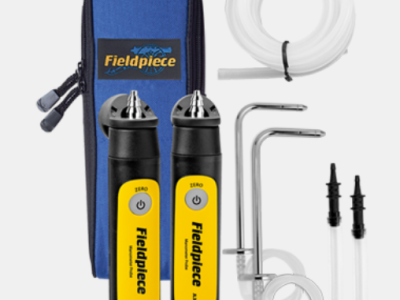

What's Included

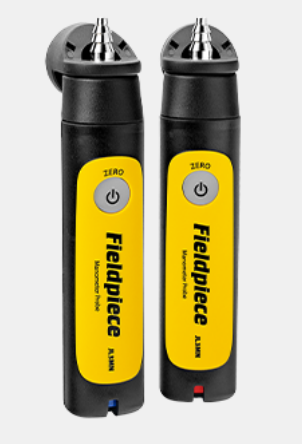

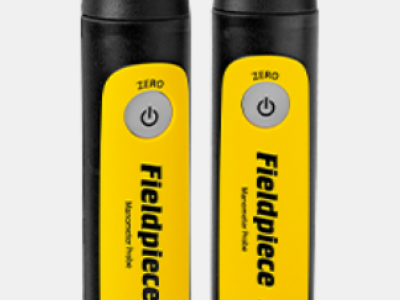

• (2) - Job Link Manometer probes (JL3MN)
• (2) - Static pressure probe and hose (ASP2)
• (2) - Brass screw fittings with extra hose
• (2) - Slide gas adapters
• (4) - AAA batteries
• (1) - Padded case
