Overview

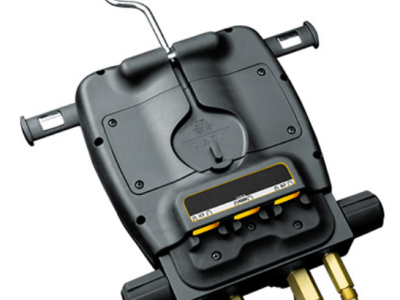

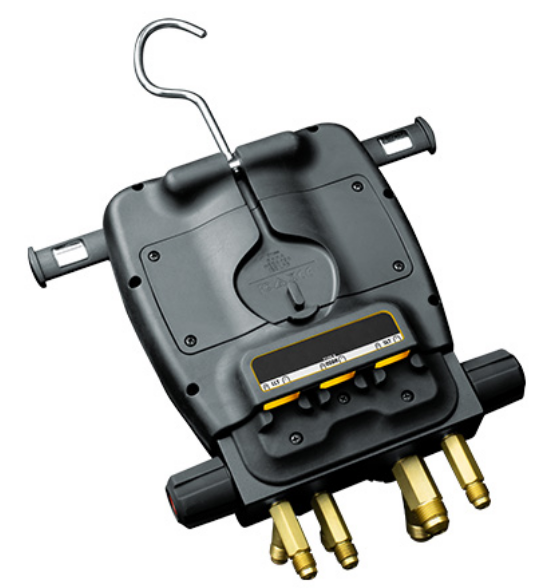

Designed for Performance: Knowledge, power and experience are packed into the newly designed SMAN Refrigerant Manifolds. Years of feedback from A/C and refrigeration specialists is combined with Fieldpiece's laser focus on continuous improvement to bring you the toughest, most advanced digital refrigerant manifold on the market. From the extremely rugged overmold casing, reinforced hook, and hermetically sealed sight glass, to the wireless capabilities, data logging, and tightness test, the SM480V is built so you can do your job easier, faster and better. Simply Strong: The new SM480V is simply strong. The heavy duty casing, reinforced hook, water resistance, impact resistant screen, SM480V strategically placed thermocouple ports, and hermetically sealed sight glass, all ensure the SMANs are ready to withstand the rigors of field use. Packed with Knowledge: The SM480V is designed to work the way you do with advanced features to streamline your job and provide your customers with the answers they need.

General Features

• 5 inch diagonal LCD display
• Blue backlight with adjustable duration
• Low battery indicator is displayed when the battery voltage drops below the operating level
• Auto power off turns the unit off after 30 minutes of inactivity (adjustable)
• Maximum manifold pressure is 800 PSIG
• Battery type and quantity: 6 - AA Akaline batteries
• Battery life: 350 hours of typical use (without vacuum, backlight and wireless)
• 2.4 GHz radio frequency
• Wireless range is 1000 feet line of sight: distance decreases through obstructions
• Micro USB data port for extracting data logs or updating firmware
• Operating environment: 32 degrees to 120 degrees at less than 75% relative humidity
• Storage environment: -4 degrees to 140 degrees at less than 80% relative humidity (with batteries removed)
• Water resistant: designed to IP54

Data Logging Features

• Stores up to 9 jobs internally
• Easy download via USB port
• Displays percent free storage space before logging begins
• Logs up to 7 days (168 continuous hours)

Tightness Test Features

• Check for leaks after repairs or installations
• View pressure differential over time
• Timer tracks duration of test
• Temperature compensated with SL temperature to avoid false positives

Customizable Features

• Adjust auto power off duration
• Adjust back light duration
• Set high and low vacuum alarms
• Select each unit of measurement individually

What's Included

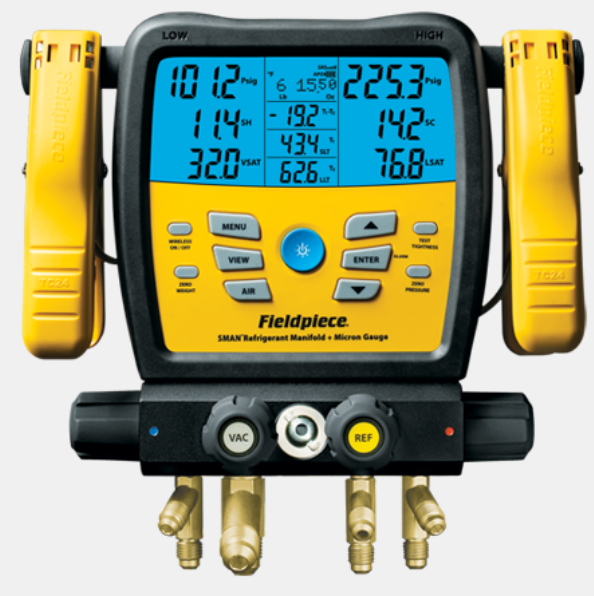

• (1) - 4 port digital refrigerant manifold (SM480V)
• (2) - Wired type "K" pipe clamp thermocouples (TC24)
• (1) - Type "K" bead thermocouple with clip (ATA1)
• (1) - Padded drawstring case (ANC11)
