Overview

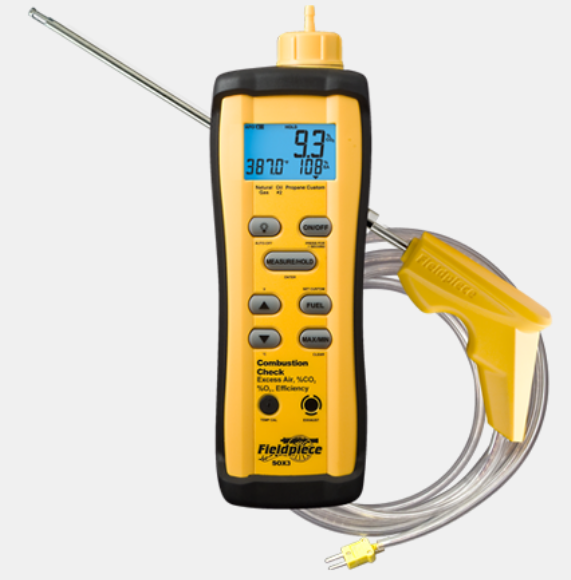

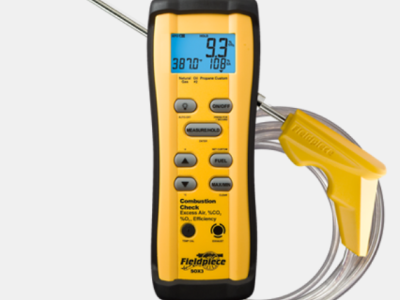

The SOX3 Combustion Check Oxygen Sensor is a great tool to easily tune furnaces when a full combustion analysis isn't necessary. Designed specifically for HVACR pros, the SOX3 provides all the essential measurements needed to tune most combustion equipment. It directly measures %O2 and flue temperature, and calculates %CO2, %Excess Air, and combustion efficiency. Like all Fieldpiece products, the SOX3 Combustion Check Tool was designed to help HVACR professionals do more with their tools. From custom fuels to field replaceable oxygen sensors, the SOX3 can be trusted to measure up for any furnace tuning job.

Features

• Automatic electric pump pause: The pump works automatically so there's no hand pumping, and techs can pause the pump at any time to save battery life

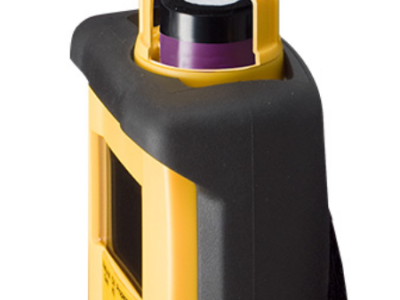

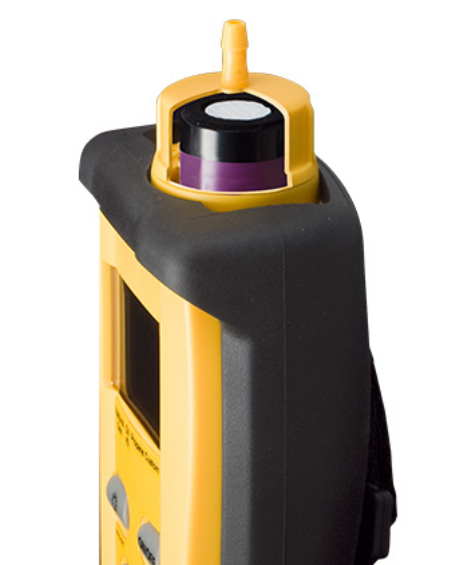

• Field replaceable oxygen sensor: The SOX3 oxygen sensor indicators tell the techs when a new sensor is needed. With calibration data stored on the sensor, it can be swapped out in seconds, so there's never a need to send your instrument in for calibration
• Hands free testing: The threaded R-cone holds the barrel firmly in the flue, and the strong magnet on the back of the SOX3 holds the instrument firmly to the side of the flue, while the internal electric pump does all the work. Techs simply view the results on the triple line display.
• Combustion efficiency: Quickly calculated and displayed on the screen, the SOX3's combustion efficiency calculation is great measurement to help determine the health of a furnace.
• Custom fuels: Not only does the SOX3 test Natural Gas, #2 oil, and Propane, but it can be quickly, and easily programmed to test any type of fuel. So non-conventional furnaces are just as easy to tune and conventional furnaces.
• 9 volt battery with 28 hours of typical life
• Auto power off after 15 minutes
• 4 digit LCD display with maximum reading of 9999
• Operating environment: 32 degrees to 122 degrees at less than 75% relative humidity

What's Included

• (1) - Combustion check (SOX3)
• (1) - Barrel and thermocouple handle (RSOX3)
• (1) - Threaded barrel lock (RCONE2)
• (1) - Filter accessory kit (RAOX9)
• (1) - Padded, blow molded case
