Overview

Test HVACR electrical equipment using phase rotation, True RMS, and Inrush features. Plus connect directly with the Job Link System app to document electrical measurements. Get True RMS readings through the clamp or leads. Inrush current mode to capture starting amps. Test 3-Phase Power with Only Two Leads with an alligator test lead (included) connected to L1, you can determine phase rotation with one hand. VFDs voltage accuracy: Low Pass Filter to remove noise and get true voltage. Test questionable motor start and run capacitors. Determine when a capacitor needs to be replaced. Molex Test Leads: Swap out your regular lead tips with the super thin Molex tips to get readings on hard to reach circuitry. Magnetic hanging strap flips out to keep the meter locked in place.

Features

• Wireless direct to Job Link System for electrical documentation
• Wireless range is 1000 feet line of sight: distance decreases through obstructions
• Display: 10,000 count dual display
• Backlight: Blue display with 5 minute duration and auto off
• Overrange: "OL" or "-OL" is displayed
• Measurement rate: 3.3 times per second, nominal
• Accuracy: Stated accuracy at 73 degrees is Plus / Minus 9 degrees at less than 75% relative humidity
• Zero: Automatic
• Requires 1 - 9 volt battery (not included)
• Battery life: 100 hours of typical use with no wireless and no backlight
• Low battery indication: Battery icon blinks and "batt" is displayed when the battery voltage drops below the operating level
• Auto power off turns the unit off after 30 minutes
• Overload protection: 1000 volts DC or 750 volts AC unless otherwise stated
• Test leads are gold plated and have removable safety caps

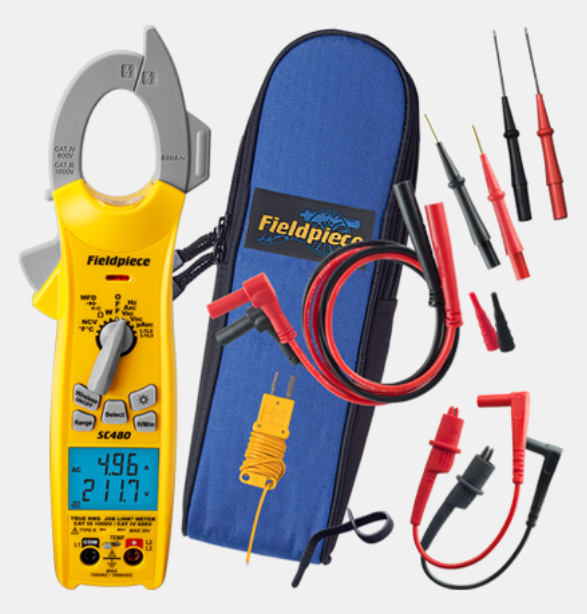

What's Included

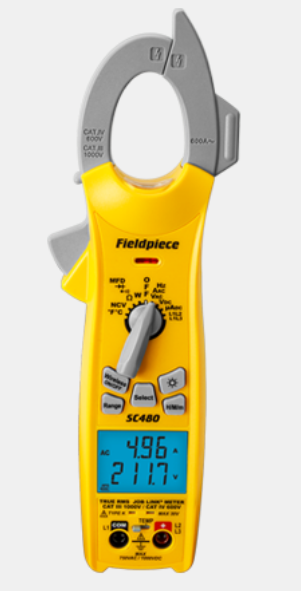

• (1) - 600 amp clamp meter (SC480)
• (2) - Silicone leads (ADLS2)
• (2) - Aligator clip leads (ASA2)
• (2) - Type "K" thermocouples (ATB1)
• (2) - Molex tips (RCT2)
• (1) - Protective padded case (ANC12)
