Overview

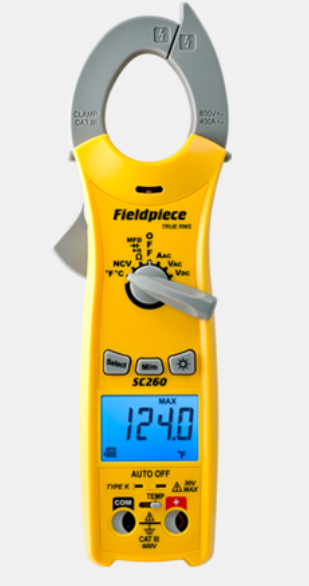

The SC260 Compact Clamp Meter is a great meter for testing HVACR electrical measurements. It includes True RMS measurements so you can test variable frequency drives more accurately, along with temperature in both Fahrenheit and Celsius. The SC260 also features a backlight display for reading measurements in poorly lit places, and a sturdy swivel magnet for hands free measurements. The SC260 helps you save time with the new Auto Select mode. Simply set the dial and connect your leads, the clamp meter will automatically select the appropriate measurement depending on what it detects. While the high temperature resistance allows you to move from a cold freezer to a hot rooftop and get accurate temperature measurements that lesser thermometers cannot measure properly.

Features

• Display: 4,000 count display
• Backlight: Blue display with 5 minute duration and auto off
• Overrange: "OL" or "-OL" is displayed
• Measurement rate: 3 times per second, nominal
• Accuracy: Stated accuracy at 73 degrees is Plus / Minus 9 degrees at less than 75% relative humidity
• Zero: Automatic
• Requires 1 - 9 volt battery (included)
• Battery life: 150 hours of typical use with no wireless and no backlight
• Low battery indication: Battery icon blinks and "LO.bt" is displayed when the battery voltage drops below the operating level
• Auto power off turns the unit off after 30 minutes
• Overload protection: 600 volts DC or 600 volts AC unless otherwise stated
• Test leads are gold plated and have removable safety caps

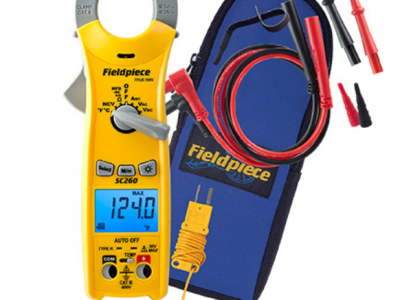

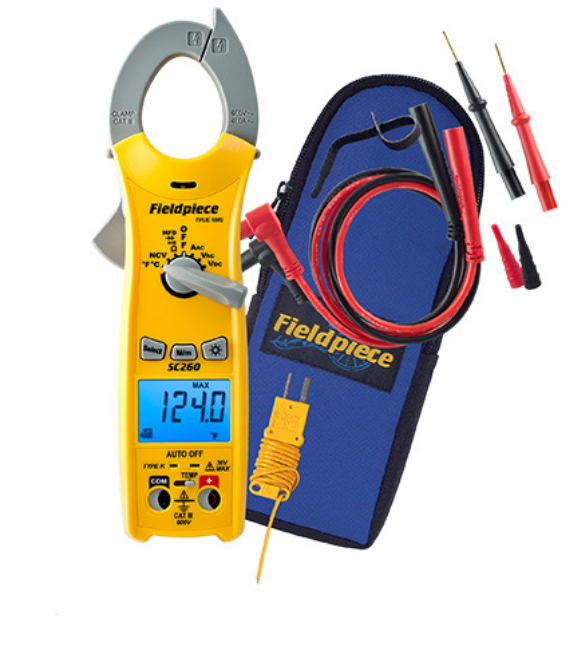

What's Included

• (1) - 400 amp clamp meter (SC260)
• (2) - Silicone leads (ADLS2)
• (2) - Type "K" thermocouples (ATB1)
• (1) - Velcro straps
• (1) - 9 volt battery
• (1) - Protective padded case (ANC4)
