Overview

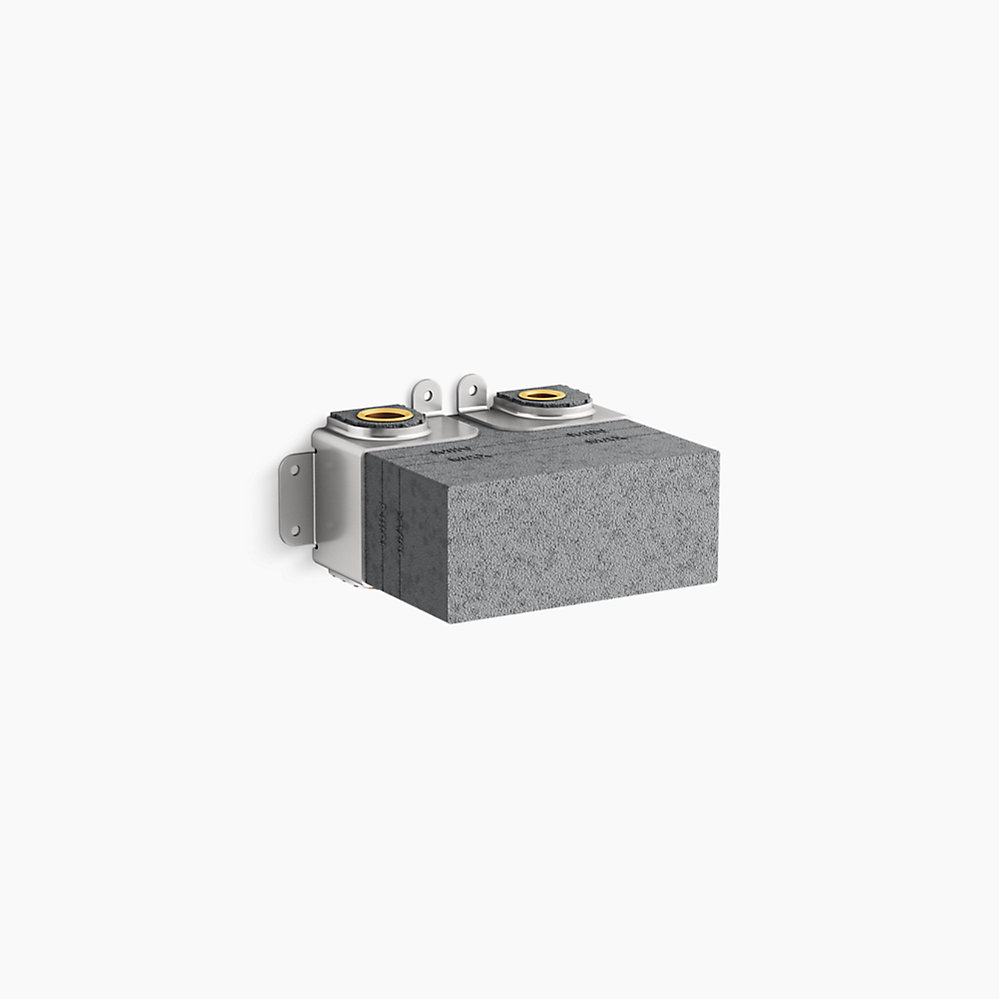

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-button. With a single port, this valve is suited for applications where only one shower outlet is used.

Features

• High-flow thermostatic mixing valve
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience
• Up to 7 gpm (26.5 lpm) maximum flow rate at 45 psi (3.1 bar)
• 3/4" female NPT inlet
• 1/2" female NPT outlet
• Service stops with integral filters
• Antiscald protection
• Integrated adjustable high-temperature limit stop to control maximum water temperature
• Adjustable comfort setting (preset at approximately 104-degree F)

Material

• Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Installation

• Requires one-outlet thermostatic valve control panel trim with recessed push button (sold separately)
• Mounts within standard 2" x 4" (38 x 102 mm) walls
• Fully-serviceable from the front of the valve
