Overview

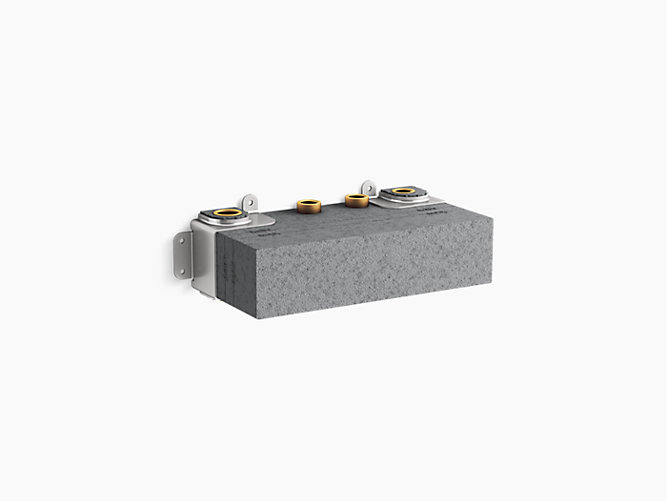

Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.

Features

• High-flow thermostatic mixing valve.
• Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience.
• Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet.
• 3/4" female NPT inlet connections.
• 1/2" female NPT outlets.
• Service stops with integral filters.
• Antiscald protection.
• Integrated adjustable high-temperature limit stop to control maximum water temperature.
• Adjustable comfort setting (preset at approximately 104-degreesF).
• Conserve water by enabling built-in eco mode, which limits use to only one outlet at a time.

Material

• Cast dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions.

Installation

• Requires three-outlet thermostatic valve control panel trim with recessed push buttons (sold separately).
• Mounts within standard 2" x 4" (38 x 102 mm) walls.
• Fully-serviceable from the front of the valve.
