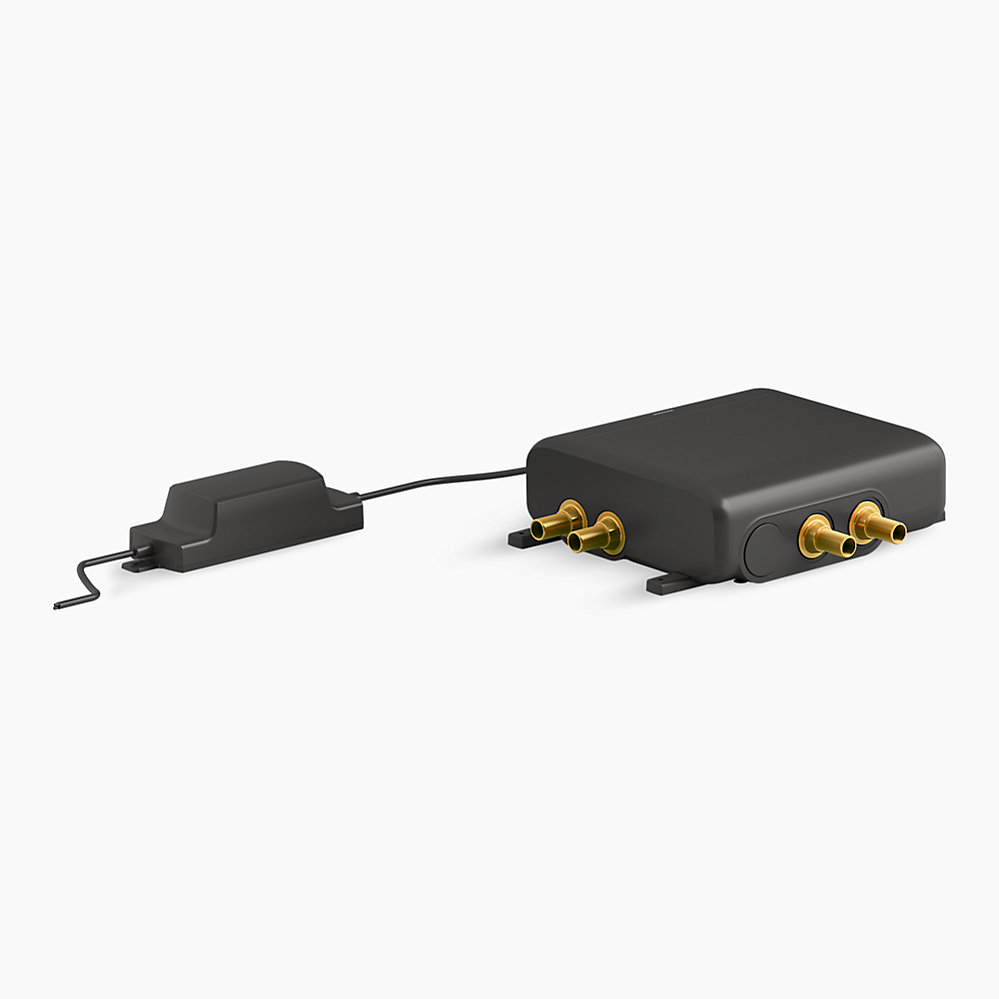

Kohler K-28209-NA Anthem(TM) Two-Port Digital Thermostatic Valve
Item SKU - 28209-NA by Kohler
EDP - 1253903
Product Description
Overview
Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
Features
- Digitally controlled thermostatic mixing valve
- Antiscald protection
- Built-in temperature and flow control
- Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
- Use with the KOHLER Konnect(R) app to unlock additional Anthem system features, Kohler-developed experiences, and system updates.
- Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
- Two independently controllable 1/2" outlets with brass tube connections
- 1/2" inlets with brass tube connections
Material
- Reinforced engineering-grade thermoplastic body
Installation
- Mounts within standard 2" x 4" (38 x 102 mm) walls
- Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control)
- Prewired with two-prong plug for connection to 120v GFCI receptacle
- After digital control is connected to valve and power source, follow on-screen prompts for easy setup; no Internet needed. (Digital control sold separately)
Documentation
Kohler K-28209-NA Anthem(TM) Two-Port Digital Thermostatic Valve
Item SKU - 28209-NA by Kohler (EDP 1253903)
Product Description
Overview
Digital thermostatic technology provides accurate, precise and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required. Optional built-in eco mode lets you use just one outlet at a time to conserve water.
Features
- Digitally controlled thermostatic mixing valve
- Antiscald protection
- Built-in temperature and flow control
- Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired
- Use with the KOHLER Konnect(R) app to unlock additional Anthem system features, Kohler-developed experiences, and system updates.
- Up to 12 gpm (45.4 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
- Two independently controllable 1/2" outlets with brass tube connections
- 1/2" inlets with brass tube connections
Material
- Reinforced engineering-grade thermoplastic body
Installation
- Mounts within standard 2" x 4" (38 x 102 mm) walls
- Install valve approximately 32' (9754 mm) away from the digital control (cable supplied with control)
- Prewired with two-prong plug for connection to 120v GFCI receptacle
- After digital control is connected to valve and power source, follow on-screen prompts for easy setup; no Internet needed. (Digital control sold separately)
