Overview

The innovative KOHLER(R) Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. This Rite-Temp valve platform uses the latest thermostatic technology to maintain precise temperature control with an exact high-temperature limit for added safety and showering comfort. Once the valve is installed, select your trim and finish from the comprehensive KOHLER design portfolio.

Features

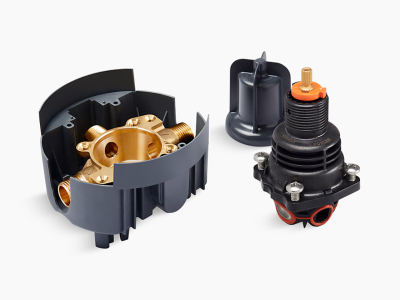

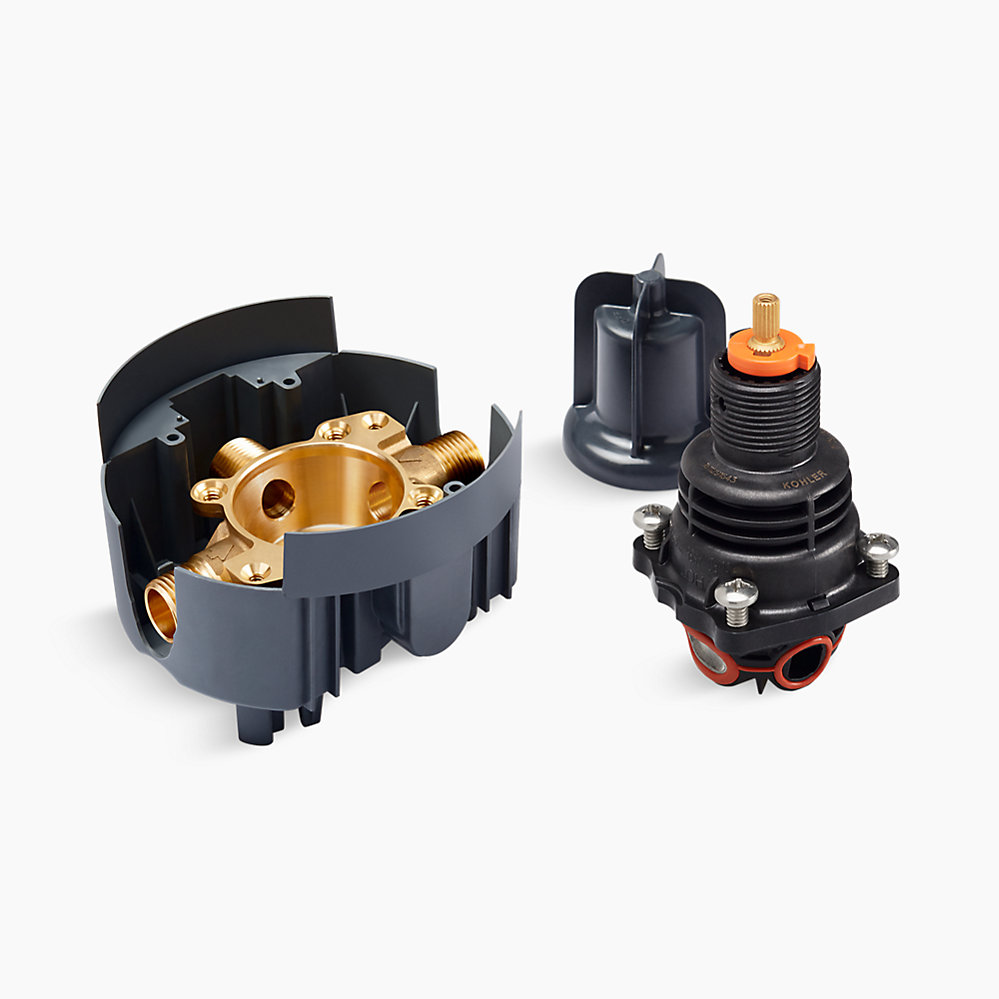

• Includes valve body, thermostatic cartridge, rough-in guide and mud guard
• 1/2" Universal NPT and direct sweat inlets and outlets
• 9 gpm (34 l/min) maximum flow rate at 45 psi
• Single lever design cycles from off through cold to hot
• One-piece cartridge design simplifies installation and maintenance
• Adjustable high-temperature limit stop to control maximum water temperature
• Requires valve trim to complete installation (sold separately)

Technology

• Thermostatic technology automatically maintains outlet temperature within +/- 3.6-degree F (+/- 2-degree C) during water pressure fluctuations

Material

• Forged dezincification-resistant brass body provides long term reliability and resistance to aggressive water conditions

Installation

• Designed for use in standard, back-to-back and thin wall installations
• Valve body features integral mounting locations and symmetrical valve inlets to simplify installation
• Cartridge is reversible for installations where hot and cold supplies are reversed
• Rough-in guide designed for both standard and thin wall installations
• Installed valve rough-in can be flushed and pressure-tested to 150 psi max (air or water) without cartridge by using included test cap
