Overview

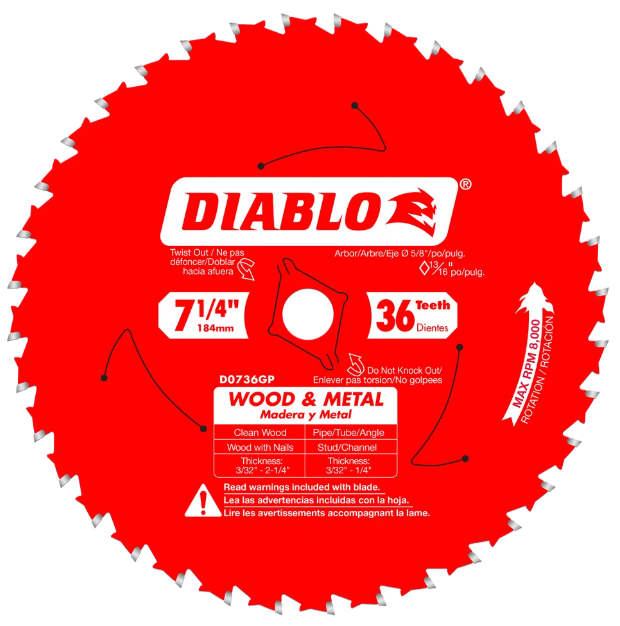

Diablo's new 7-1/4 inch Wood and Metal saw blade is the industry's first multi-purpose saw blade for cutting clean wood and wood with nails, up to 2-1/4 inch material thickness; and metal ranging from 3/32 inch -1/4 inch wall thickness and 1/4 inch -1 inch diameter. The versatility of these new blades provides the ability to use the same blade to cut wood and metal so now users can focus on completing the job more efficiently rather than wasting time with changing tools and saw blades. The Diablo made TiCo carbide tips, which are specially designed for this blade, coupled with the blade's Chamber-Alternate Tooth Design (C-ATB) tooth design provides impact resistance for cutting wood with nails as well as the durability for creating clean, burr free cuts in metal. Optimized for corded and cordless saws, this new blade cuts 2X lumber, wood with nails, angle iron, channel, flat bar, steel studs and threaded rod.

Features

• 5/8 inch arbor - 7-1/4 inch diameter - 5 degree hook angle - .067 inch kerf - .051 inch plate - 36 total blade teeth - 8,000 maximum RPM
• Specially formulated Diablo TiCo Carbide withstands impact, reduces wear and lasts longer in wood and metal cutting applications
• Chamfer-Alternate Top Bevel (C-ATB) tooth design cleanly shears through wood while providing the durability needed for clean, burr-free cuts in metal
• Tri-Metal Shock Resistant Brazing allows carbide tips to withstand extreme impact for maximum durability in wood and metal applications
• Perma-SHIELD non-stick aluminum coating protects the blade against heat, gumming and corrosion
• Advanced Laser Cut Stabilizer Vents traps noise and vibration for maximum stability, keeping the blade cool with accurate cuts in wood and metal
• Laser Cut Thin Kerf Design provides less resistance and heat build-up for ease of cut, accuracy and long cutting life in wood and metal
• Laser Cut Arbor reduces vibration and premature wear for accurate blade rotation on corded and cordless saws
• Cuts up to 2-1/4 inch material thickness in clean wood and wood with nail cutting applications
• Cuts 3/32 inch - 1/4 inch wall thickness in steel studs, channel, angle iron, pipe, tubing, plate and bar stock
• Cuts 1/4 inch - 1 inch diameter threaded rod
