Overview

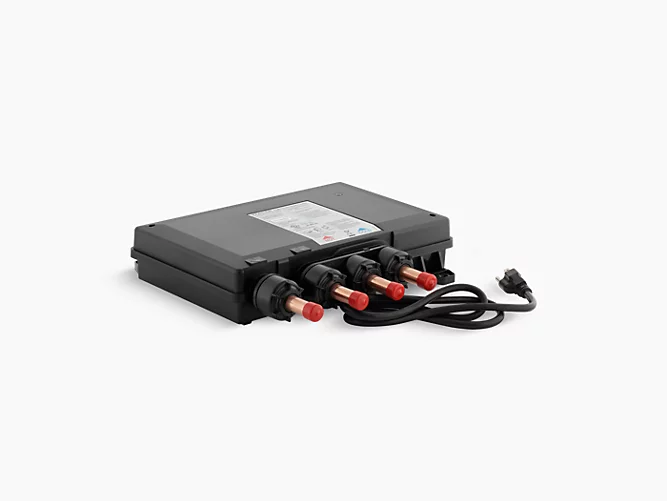

Digital thermostatic technology provides accurate, precise and consistent temperature control in your DTV(R) showering system. This precision-engineered, best-in-class digital thermostatic valve is designed for use with the DTV Prompt(R) two-port digital interface or DTV Mode(TM) digital interface.Its easy plug-and-go design makes installation simple. With two independently controllable outlet ports, this valve is ideally suited for applications where only one or two shower outlets are required.

Features

• Digitally controlled thermostatic mixing valve.
• Anti-scald protection.
• Up to 13 gallons per minute (49.2 L) flow rate with maximum flow of 8 gallons per minute (30.3 L) from one outlet.
• Two independently controllable 1/2" outlets with copper tube connections.
• 1/2" (12.7 mm) inlets with copper tube connections.
• Mounts within standard 2" x 4" walls.

Material

• Reinforced engineering-grade thermoplastic body.

Installation

• Install valve up to 20' away from the digital interface (cable supplied with interface).
• Distance can be extended with a standard RJ-11 phone extension cord.
• Pre-wired with three-prong plug for connection to 110V AC receptacle.
• Requires K-527, K-527-E, K-29200, K-29201, K-29202, K-29202-E, K-29204, or K-29205 bath or shower interface (sold separately).
