Viessmann ZK04123 Vitocell 300-B EVBA-119 Stainless Steel 119 Gallon Dual Coil Indirect Water Heater
Item SKU - ZK04123 by Viessmann
EDP - 1197147
Please Login for Pricing
Product Description

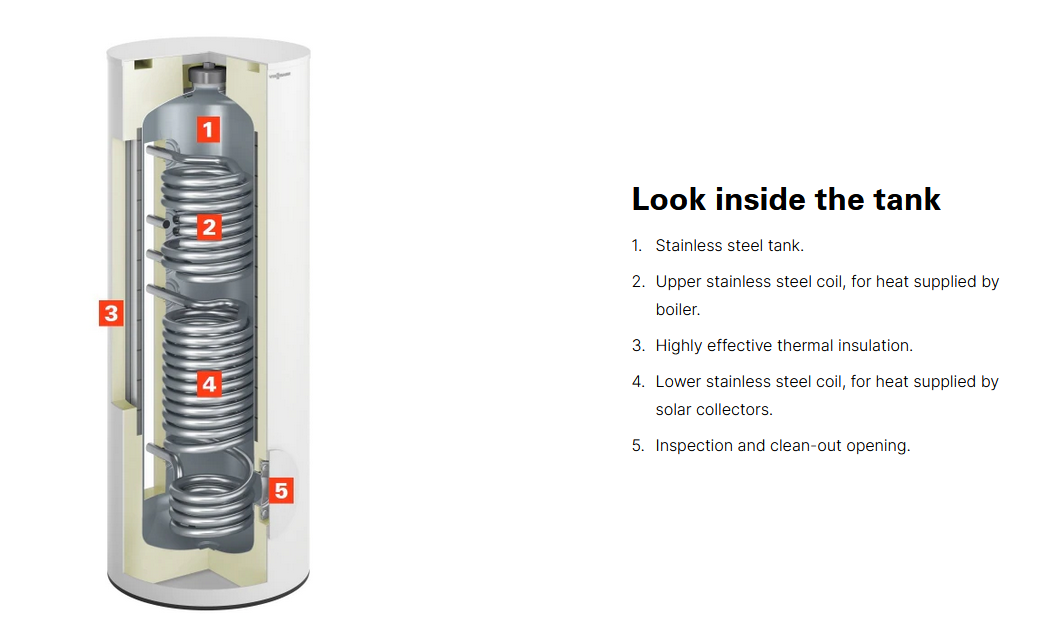

Dual 1-3/8 inch diameter stainless steel coils - Coil extends to the bottom of the tank - Stainless steel tank - Fast and even heating - Removable soft PET insulation
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Tank Size (Gallons)
119
Heat Exchanger Material
Stainless Steel
Tank Material
Stainless Steel
Heat Exchanger Style
Coil
Number of Heat Exchangers
2
Height (inches)
69.50
Diameter/Width (inches)
38.375
Boiler Water Connection
1 1/4 Male
Water Inlet Size
1 1/4 Male
Hot Water Outlet Size
1 1/4 Male
Boiler Connection Location
Side
Input Water Temperature
180 degrees
Domestic Water Temperature
115 degrees
First Hour Rating (GPH)
613
Continuous Flow (GPH)
461
Relief Valve
Yes
Standby Heat Loss per Hour
.50
Approximate Weight (pounds)
276
