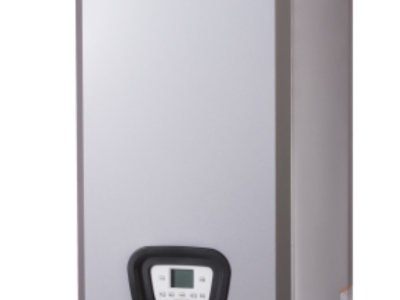

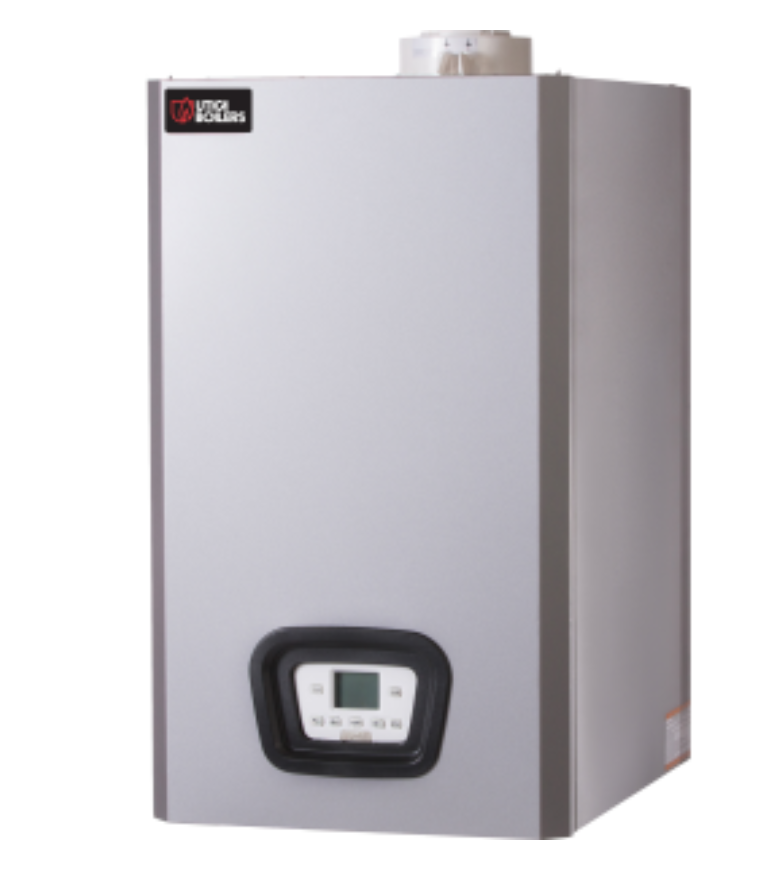

Utica MAC120503600110 MAC-205 Natural Gas/LP Wall Hung Condensing Boiler with Domestic Hot Water less Circulator
Item SKU - MAC120503600110 by Ecr
EDP - 1172609
Please Login for Pricing
Product Description
Features
- 29,500 BTU input to 164,000 BTU input in heating only mode - 153,000 BTU heating capacity - 95.0% AFUE - Energy Star Rated - Does not include circulator
- 29,500 BTU input to 205,000 BTU input in domestic hot water mode - 153,000 BTU heating capacity
- Domestic hot water has stainless steel heat exchanger and 5 gallon per minute recovery at 70 degrees
- 3 inch PVC, CPVC or Polypropylene flue pipe - Requires boiler adapter kit - Automatically recognizes Natural Gas or LP
- Stainless Steel Heat Exchanger - Electrical connections at bottom of boiler - 3/4 inch copper supply and return connections
- Stainless steel mesh modulating burner - Intermittent direct spark ignition - Includes low water cut off
- Fully removable jacket front - Includes condensate drain with built in trap - Easy programming with text display
- Wall Hung - Multiple boiler functionality - Outdoor temperature sensor included - LCD status display - Flame sensor
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Liquid Propane
Natural Gas
Type
Water
Heat Exchanger Material
Stainless Steel
BTU Input
205000
BTU Output
153000
Annual Fuel Usage Efficiency (AFUE)
95.0
Domestic Hot Water
Yes
Vent Type
Power Vent
Building Type
Residential
Length (inches)
21.50
Width (inches)
17.75
Height of Boiler (inches)
30
Vent Material
PolyPro
PVC/CPVC
Supply
1 Sweat
Return
1 Sweat
Gas Connection (inches)
3/4
Vent Size (inches)
3
Approximate Weight (pounds)
135
