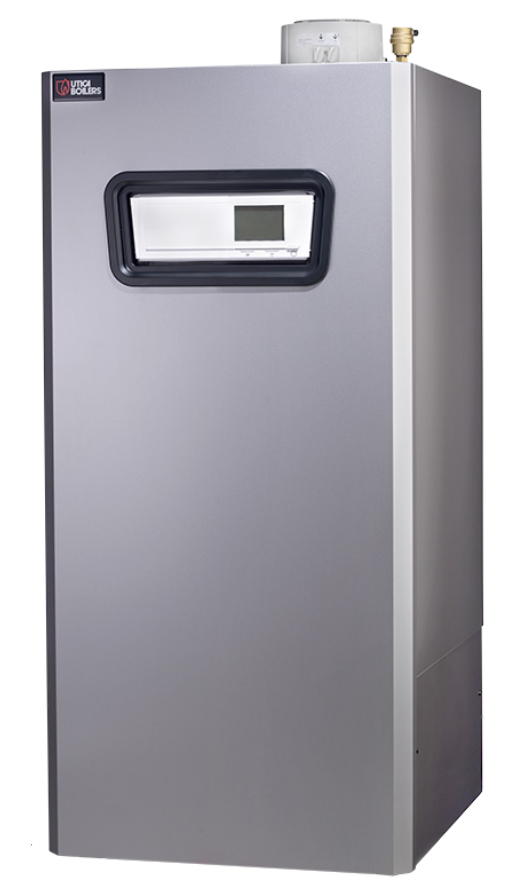

Utica UCS138000600110 UCS-380 Natural Gas/LP Floor Mounted Condensing Boiler with Circulator
Item SKU - UCS138000600110 by Ecr
EDP - 1161785
Please Login for Pricing
Product Description
Features
- 35,000 to 379,000 BTU input - 348,000 BTU heating capacity - 95% Thermal Efficiency - Energy Star Rated - Built in circulator
- 4 inch CPVC or Polypropylene flue pipe - Can be used with LP without a conversion kit
- Stainless Steel Heat Exchanger - All connections at bottom of boiler - 1-1/2 inch copper or ProPress supply and return connections with included manifold
- User interface with LCD text and graphical screen display - Floor mounted - Multiple boiler functionality
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Liquid Propane
Natural Gas
Type
Water
Heat Exchanger Material
Stainless Steel
BTU Input
379000
BTU Output
348000
Domestic Hot Water
No
Vent Type
Direct Vent
Building Type
Commercial
Length (inches)
25.50
Width (inches)
25.625
Height of Boiler (inches)
50
Vent Material
PolyPro
PVC/CPVC
Supply
Female Iron Pipe 1 1/2
Return
Female Iron Pipe 1 1/2
Gas Connection (inches)
1
Vent Size (inches)
4
Net BTU
303000
Approximate Weight (pounds)
225
