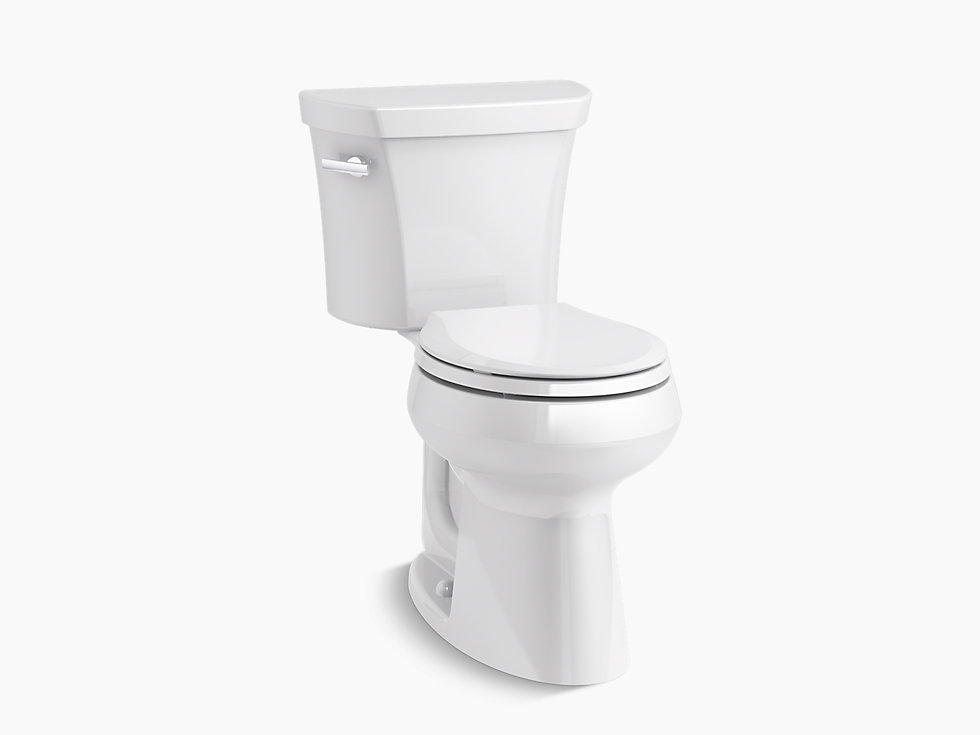

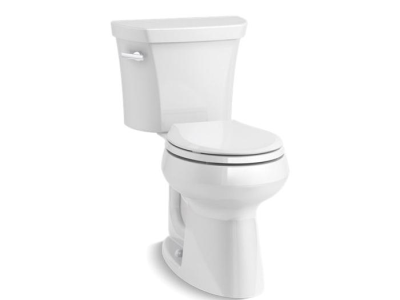

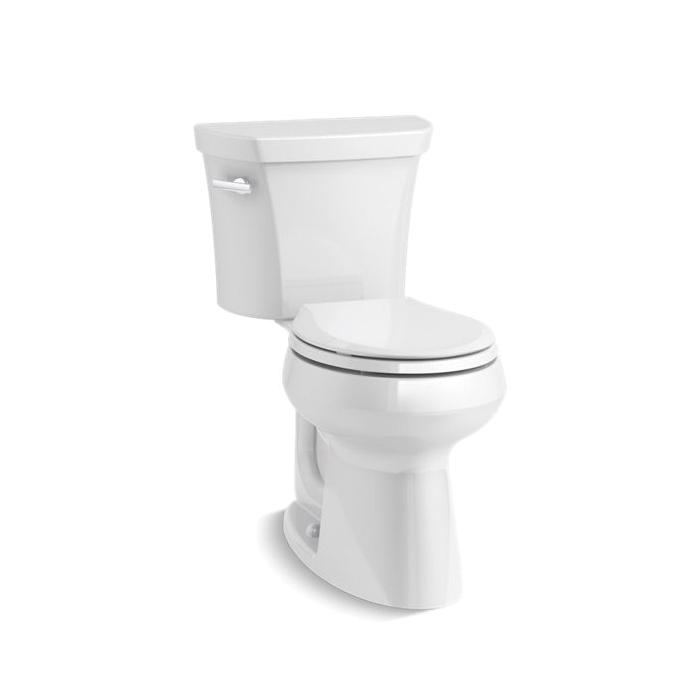

Kohler K-5481-0 Highline Comfort Height Two-Piece Round Toilet - White

Item SKU - 5481-0 by Kohler
EDP - 1096758


Please Login for Pricing

Product Description

Overview

With its clean, simple design and efficient performance, this Highline water-conserving toilet combines both style and function. An innovative 1.28-gallon flush setting provides significant water savings of up to 16,500 gallons per year, compared to an old 3.5-gallon toilet, without sacrificing flushing power. The chair-like height ensures comfortable use.

Features

  • Two-piece toilet.
  • Round-front bowl offers an ideal solution for smaller baths and powder rooms.
  • Comfort Height(R) feature offers chair-height seating that makes sitting down and standing up easier for most adults.
  • 1.28 gallons per flush (gpf).
  • Standard left-hand Polished Chrome trip lever included.
  • Combination consists of the K-4467 tank and the K-5393 bowl.
  • Seat not included.

Technology

  • Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing.
  • Class Five(R) flushing technology offers virtually plug-free performance and rinsing power for a clean bowl.

Installation

  • Standard 12-inch rough-in.
  • Three-bolt installation.
  • Seat and supply line not included.

Water Conservation & Rebates

  • WaterSense(R) toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallon toilets.
  • Eligible for consumer rebates in some municipalities.
  • This product meets water savings requirements for California Energy Commission (CEC), CALGreen, and Colorado SB 14-103.

Documentation

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

GPF
1.28
Tank Color
White
Flush Technology
Class 5
Wall Mount
No
WaterSense
Yes
Tank Height (inches)
14.75
Tank Width (inches)
18.125
Tank Length (inches)
8.625
Includes Tank Lever/Flush Actuator
Yes
Insulated
No
Tank Cover Locks
No
Tank Lever Location
Left
Number of Pieces
2
Overall Height (inches)
31.25
Overall Width (inches)
18.125
Overall Length (inches)
27.75
Rough In
12
Shape
Round
Bowl Color
White
Nominal Height
Comfort Height
Includes Seat
No
Mount
Floor
Bowl Height (inches)
16.5
Bowl Length (inches)
27.75
Material
Vitreous China
Requires Electrical
No
Water Line Rough Height above Ground (inches)
5
Water Line Rough Distance Off Center(inches)
4.625
Concealed Trapway
No
Skirted Trapway
No
Antimicrobial Microglaze Finish
No
ADA
Yes
Outlet Location
Back
Water Spot/Surface (inches)
10-1/2" x 8-1/4"
Trapway Size (inches)
2.125
Collection
Highline
Warranty
Limited 1-Year
