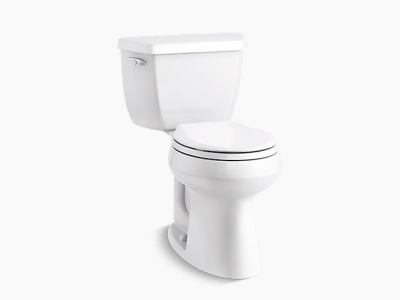

Kohler K-5296-0 Highline Classic Comfort Height Two-piece Round Toilet - White

Item SKU - 5296-0 by Kohler
EDP - 1096033


Please Login for Pricing

Product Description

Overview

With its clean, simple design and efficient performance, this Highline Classic water-conserving toilet combines both style and function. An innovative 1.28-gallon flush setting provides significant water savings of up to 16,500 gallons per year, compared to an old 3.5-gallon toilet, without sacrificing flushing power. The chair-like height ensures comfortable use.

Features

  • Round-front bowl offers an ideal solution for smaller baths and powder rooms.
  • Comfort Height(R) feature offers chair-height seating that makes sitting down and standing up easier for most adults.
  • 1.28 gallons per flush (gpf).
  • Standard left-hand Polished Chrome trip lever included.
  • Combination consists of the K-4436 tank and the K-5393 bowl.

Technology

  • Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing.
  • Class Five(R) flushing technology offers virtually plug-free performance and rinsing power for a clean bowl.

Installation

  • Standard 12-inch rough-in.
  • Three-bolt installation.
  • Seat and supply line not included.

Water Conservation & Rebates

  • WaterSense(R) toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallons toilets
  • Eligible for consumer rebates in some municipalities

Documentation

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

GPF
1.28
Tank Color
White
Flush Technology
Class 5
Wall Mount
No
WaterSense
Yes
Tank Height (inches)
13.875
Tank Width (inches)
19.625
Tank Length (inches)
8
Includes Tank Lever/Flush Actuator
Yes
Insulated
No
Tank Cover Locks
No
Tank Lever Location
Left
Number of Pieces
2
Overall Height (inches)
30.375
Overall Width (inches)
19.625
Overall Length (inches)
27.75
Rough In
12
Shape
Round
Bowl Color
White
Nominal Height
Comfort Height
Includes Seat
No
Mount
Floor
Bowl Height (inches)
16.5
Bowl Length (inches)
27.75
Material
Vitreous China
Requires Electrical
No
Water Line Rough Height above Ground (inches)
5
Water Line Rough Distance Off Center(inches)
4.625
Concealed Trapway
No
Skirted Trapway
No
Antimicrobial Microglaze Finish
No
ADA
No
Outlet Location
Floor
Water Spot/Surface (inches)
10-1/2" x 8-1/4"
Trapway Size (inches)
2.125
Collection
Highline
Warranty
Limited 1-Year
