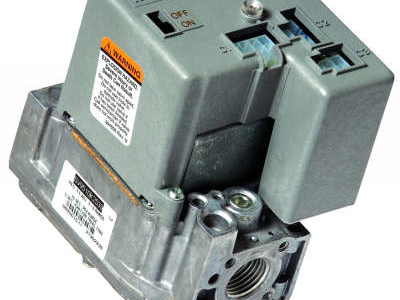

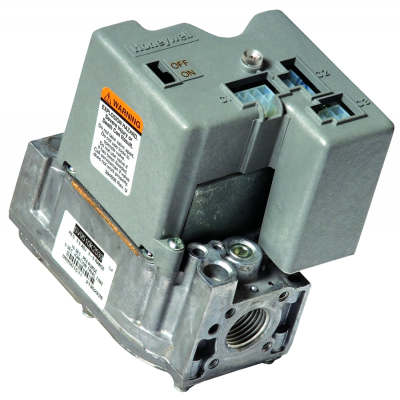

Honeywell SV9520H-8513/U SmartValve 1/2 inch Fast-Slow Opening Direct Hot Surface Pilot Natural Gas Valve
Item SKU - SV9520H8513/U by Honeywell
EDP - 919028
Product Description
Old Number SV9520H-8513
SmartValve gas valve combines gas flow control and electronic direct main burner ignition sequencing functions into a single unit
The ignition source is 120V hot surface igniter lighting the main burner flame
Provides all gas ignition safety functions by controlling gas flow, ignition source, and a 120 Vac combustion air blower
The control also monitors the appliance airflow proving switch circuit and limit string to assure proper appliance operation
Provides prepurge, postpurge and timed trial for ignition with multiple ignition trials and auto reset from lockout
Diagnostic LED indicates system status - Communicates directly with the ST9160 Electronic Fan Timer (EFT) in typical forced warm air furnace applications.
can directly interface with the appropriate power supplies and a system thermostat for additional appliance applications.
When controlled directly by a thermostat, the control does not provide a postpurge function, as power to the control is removed when the thermostat call for heat ends
Includes LP conversion kit
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Approximate Weight (pounds)
