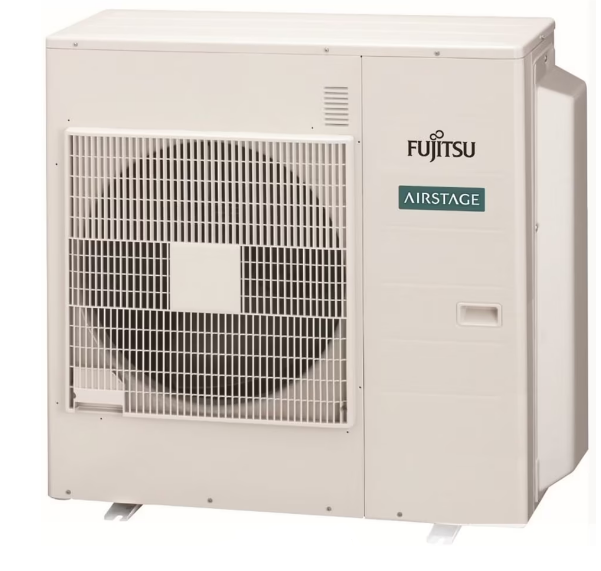

Fujitsu AOU36RLXFZH Airstage XLTH 3 Ton 20.5 Seer2 Mini Split Heat Pump Two, Three, or Four Zone Outdoor Unit

Item SKU - AOU36RLXFZH by Fujitsu
EDP - 1107082


Please Login for Pricing

Product Description

Overview

AIRSTAGE Series systems eliminate the need for a traditional central system and bulky ductwork by using small tubing that pumps refrigerant directly to discreet wall mounted or concealed units inside. Even more remarkable, this same system works in reverse during the cold season, absorbing heat energy from the outside air and moving it indoors to heat your home. The result? Efficient year-round cooling and heating, zoning flexibility, and optimum comfort in any climate. A heat pump uses electricity to pump refrigerant and transfer heat energy from one space to another. In the summer, heat energy from inside is absorbed and released outdoors. In the winter, heat energy is absorbed from the outside air and released inside. Do you have a warm or cool spot in your home? Fujitsu AIRSTAGE mini-splits can provide extra cooling or heating capacity for those hard to cool areas. Commercially, their small size makes them ideal for small offices, providing individual temperature control.

Features

  • 3 ton cooling capacity - 36,400 BTU's heating capacity
  • Outdoor operating range for heating: Minus 15 degrees to 75 degrees
  • Outdoor operating range for cooling: 14 degrees to 115 degrees

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Nominal Cooling
35200
Nominal Heating
36400
Indoor Matchup
4
Electrical Designation
1-60-208/230
Refrigerant
R410A
SEER
20.5
EER
13
HSPF
9.5
Compressor Speed
Inverter
Suction Line Size
3/8, 3/8, 3/8, 1/2
Suction Line Quantity
4
Liquid Line Size
1/4
Liquid Line Quantity
4
Circuit Breaker Capacity
40
Building Type
Residential
Length (inches)
14.5625
Height (inches)
39.5625
Width (inches)
38.1875
Weight (pounds)
205
