Overview

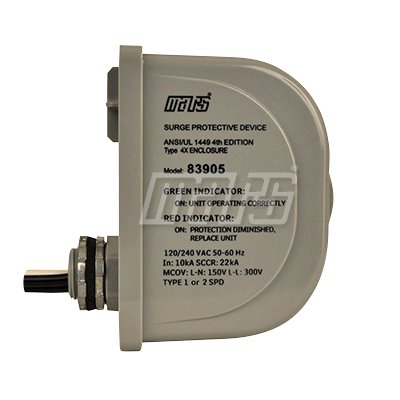

The MARS SPD is designed to protect your HVAC equipment from power spikes, surges and transients. Power spikes and surges can damage compressors, control boards, sensors and ECM motors resulting in costly repairs and down time. The MARS SPD utilizes Thermally Protected MOV technology to provide safe and reliable surge protection.

The MARS SPD is designed to protect HVAC equipment:

• Compressors
• Heat Pumps
• Mini-Splits
• ECM Motors
• Control Boards
• Transformers
• Sensors

Features

• Easy installation to disconnect box or junction box
• Weatherproof 4X enclosure
• Fits 1/2" knockouts
• 18" leads for ease of installation
• Green & Red LED status indicators
• Thermally protected MOV
• 120/240V single (split) phase 50/60Hz
• Max surge current 10,000 A
• Max continuous overvoltage L-N 150V / L-L 300V
• Voltage protection rating L-N 800V / L-L 1200V
• 3 Year warranty
• $7,500 Connected equipment warranty
