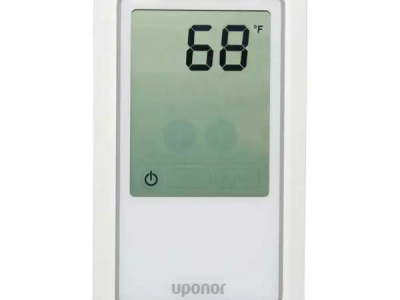

Uponor A3100101 Heat-Only Thermostat

Item SKU - A3100101 by Uponor
EDP - 1098066
Please Login for Pricing

Product Description

Overview

Uponor offers several thermostats designed for precise temperature control of hydronic radiant applications. These thermostats use fully automatic differential and pulse width modulation (PWM) control functions to ensure each radiant zone is comfortable and energy efficient.

Documentation

  Installation Guide
  Specifications Sheet

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Power
24 Volt
Connection to System
Wired
Type
Non-Programmable
Stages
1 Heat
Heat Pump Compatible
No
Height (inches)
5.39
Width (inches)
3.22
Heating Temperature Min (Fahrenheit)
32
Heating Temperature Max (Fahrenheit)
104
User Interface
Touchscreen
Terminal Designation
R
W
Humidistat
None

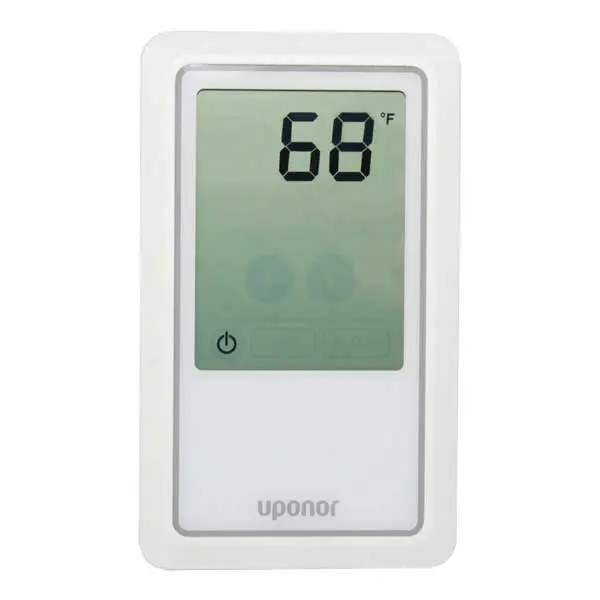

Uponor A3100101 Heat-Only Thermostat

Item SKU - A3100101 by Uponor (EDP 1098066)

Stock / Price Information

Please Login for Pricing

Product Description

Overview

Uponor offers several thermostats designed for precise temperature control of hydronic radiant applications. These thermostats use fully automatic differential and pulse width modulation (PWM) control functions to ensure each radiant zone is comfortable and energy efficient.

Documentation

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Power
24 Volt
Connection to System
Wired
Type
Non-Programmable
Stages
1 Heat
Heat Pump Compatible
No
Height (inches)
5.39
Width (inches)
3.22
Heating Temperature Min (Fahrenheit)
32
Heating Temperature Max (Fahrenheit)
104
User Interface
Touchscreen
Terminal Designation
R
W
Humidistat
None
