Watts BD911SM3 0386468 1/2 inch Sweat Union Inlet x 1/2 inch Female Outlet Brass Body Dial Set Automatic Water Boiler Feed with Backflow Preventer
Item SKU - 0386468 by Watts
EDP - 1097862
Product Description

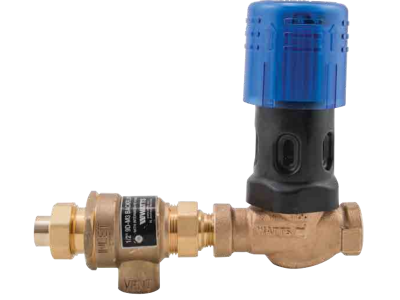

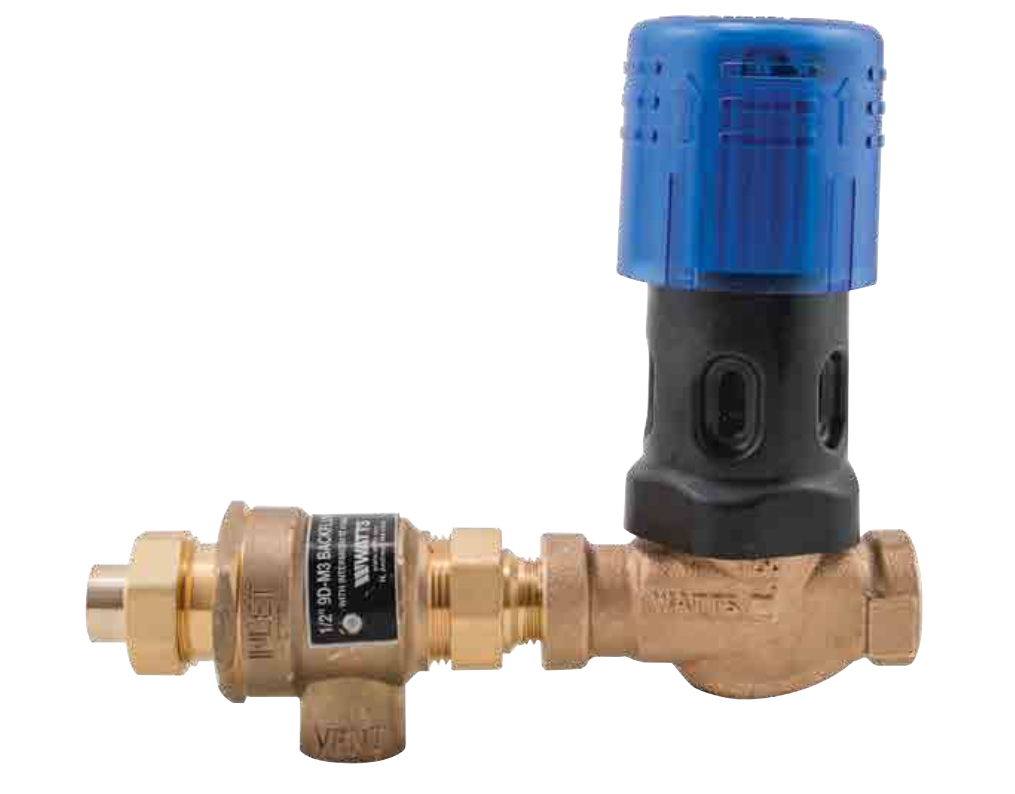

This 1/2 inch bronze combination dial set fill valve and backflow preventer is for use in commercial and residential hydronic heating systems to provide make-up water to the boiler, and prevent backflow when supply pressure falls below system pressure. It consists of a bronze model 9D backflow preventer and a bronze model BD1156F feed water pressure regulator in one pre-assembled unit. The high capacity fill valve provides quick system filling and purging. It is designed for use in the boiler feed lines of hydronic heating systems. It has 1/2 inch union solder inlet x NPT threaded outlet connections. The maximum pressure is 100 psi
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Lead Free
Material
Size
Built In Ball Valve
Built In Wye Strainer
Combination
Approximate Weight (pounds)
