Overview

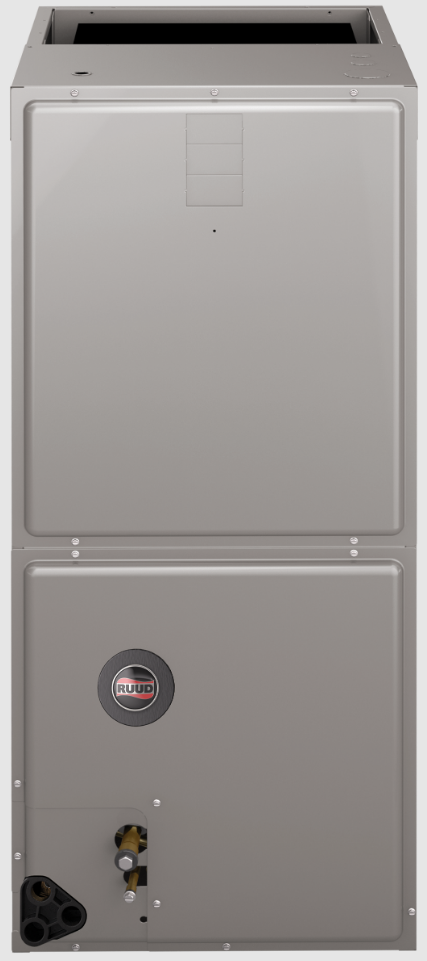

The Ruud RHMV EcoNet enabled air handler is equipped with an electronic expansion valve (EEV), which can intelligently change the EEV position based on system demands. By the measurement of the suction pressure via the vapor line pressure transducer (factory installed) and the vapor line thermistor (field connected to the vapor line, but factory provided within the air handler) the EcoNet enabled air handler control calculates the suction superheat at the indoor coil. This calculation permits the air handler control to make decisions for when to open and close the EEV for the purpose of maintaining a predetermined suction superheat. The EEV is equipped with a 4 pole removable external stator, and inlet and outlet chatleff fittings for optimal serviceability. These valves also have an internal check valve to provide heat pump compatibility. When operating in heating mode, the air handler control will open the EEV completely to permit the check valve to operate and maximize reverse refrigerant flow.

Features

• This is a multiposition air handler: Upflow, downflow, horizontal right or horizontal left
• Can be used with air conditioning or heat pumps
• Modulating air flow
• Supply dimensions: 10-5/16 inches front to back - 19-1/2 inches side to side - Supply duct flanges are standard
• Return dimensions: 19-3/4 inches front to back - 19-3/8 inches side to side
• EcoNet controls
• The most compact unit design available

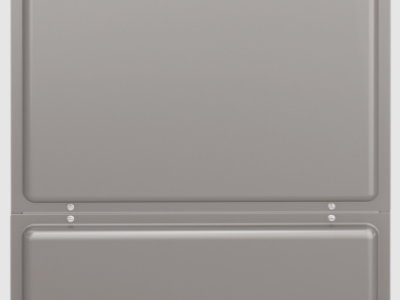

• Pre-painted rugged steel cabinet
• 1 inch foil faced insulation mechanically retained in blower cabinet
• Four leg blower motor

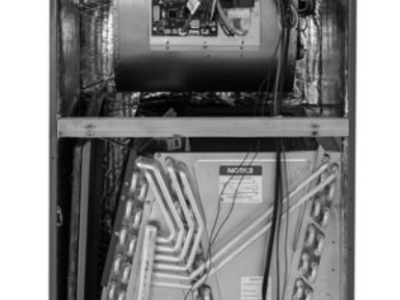

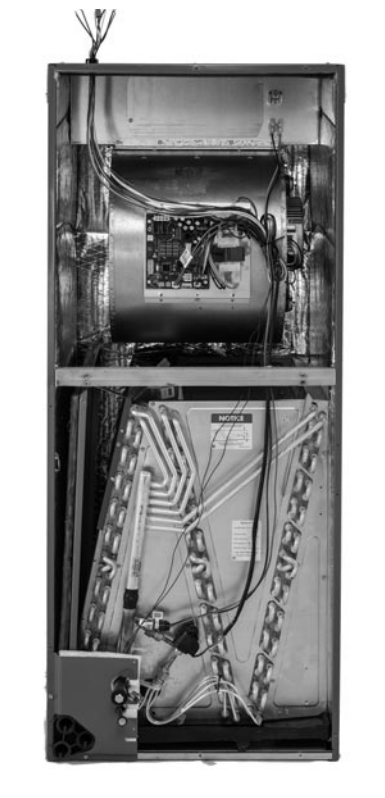

• Slide out blower housing with motor, blower and controls for service and maintenance convenience
• Top, left or right side electrical connections
• Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing
• Molded polymer, corrosion resistant condensate drain pan
• Coils utilize chatleff metering devices
• High voltage connections are on the inside of the cabinet - Low voltage connections are on the outside of the cabinet
• Front refrigerant and drain connections
