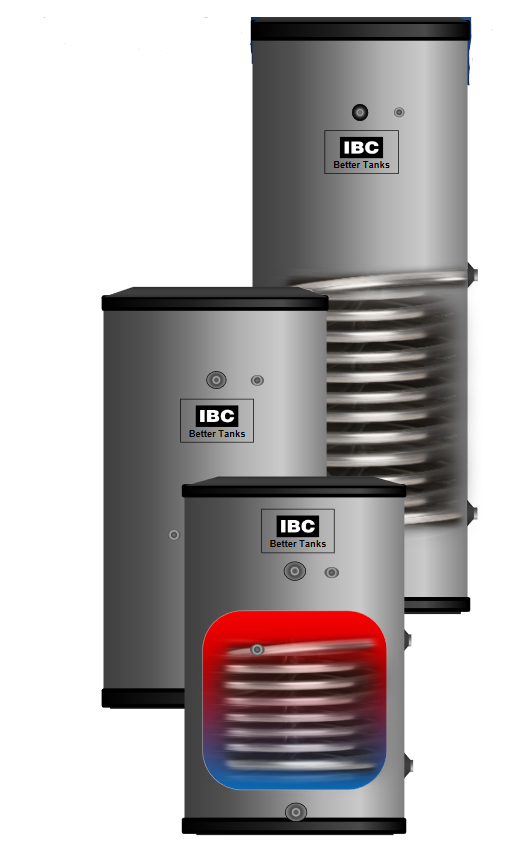

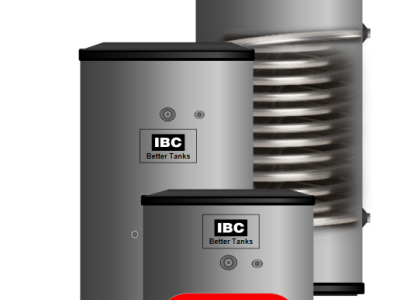

IBC BTI-30 Interstor 30 Gallon Indirect Water Heater with Control
Item SKU - 034-007 by IBC
EDP - 1076685
Please Login for Pricing
Product Description
Overview
Features
- High performance domestic hot water
- Stainless Steel construction, pickled & passivated for the highest possible resistance to corrosion
- Top DHW connections on commercial models and side boiler connections on residential models increase install efficiency while saving time, money, and labor.
- High-capacity smooth wall Stainless Steel coil
- Regular & MAX options available
- Maintenance-free design
- BTI models are lightweight for easy installation 2" of polystyrene foam insulation for an extremely low standby heat loss
- Removable inspection port for easy access to coil and tank (BTI)
- Standard Aquastat & 10K temperature sensor
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Tank Size (Gallons)
26.7
Heat Exchanger Material
Stainless Steel
Tank Material
Stainless Steel
Heat Exchanger Style
Coil
Number of Heat Exchangers
1
Height (inches)
39.6
Diameter/Width (inches)
20
Boiler Water Connection
1 Male
Water Inlet Size
3/4 Male
Hot Water Outlet Size
3/4 Male
Input Water Temperature
180 degrees
Domestic Water Temperature
140 degrees
First Hour Rating (GPH)
159
Continuous Flow (GPH)
137
Relief Valve
Yes
Boiler Output Required (BTU)
88000
Approximate Weight (pounds)
50.7
IBC BTI-30 Interstor 30 Gallon Indirect Water Heater with Control
Item SKU - 034-007 by IBC (EDP 1076685)
Stock / Price Information
Please Login for Pricing
Product Description
Overview
Features
- High performance domestic hot water
- Stainless Steel construction, pickled & passivated for the highest possible resistance to corrosion
- Top DHW connections on commercial models and side boiler connections on residential models increase install efficiency while saving time, money, and labor.
- High-capacity smooth wall Stainless Steel coil
- Regular & MAX options available
- Maintenance-free design
- BTI models are lightweight for easy installation 2" of polystyrene foam insulation for an extremely low standby heat loss
- Removable inspection port for easy access to coil and tank (BTI)
- Standard Aquastat & 10K temperature sensor
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
