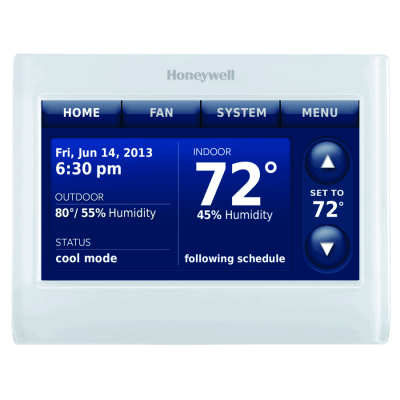

Honeywell THX9421R-5021WW/U Prestige IAQ Programmable Heating and Cooling Thermostat with Color Touchscreen - White
Item SKU - THX9421R5021WW/U by Honeywell
EDP - 1025545
Product Description
RedLINK compatible - Two wires at the thermostat - Wireless control of equipment using the THM5421R-1021/U Equipment Interface Module and RedLINK accessories (Not included)
7 day (All days seaparate) programming - Color touchscreen programming - Displays in 8.06 square inch standard touchscreen - Conventional systems have 3 heat and 2 cool stages - Heat pumps have 4 heat and 2 cool stages
Automatic or manual changeover - Horizontal mount - Smart Schedule programs in seconds for any lifestyle
Selectable for residential and light commercial applications - Light commercial language (occupied and unoccupied), schedule holidays and custom events, remote setback, economizer and time of day
All Prestige IAQ kits come standard with a return and discharge air temperature sensor to measure Delta T
Delta T Alerts and Diagnostics informs customers when their system is not performing as expected with instructions to contact the dealer
Alerts and User Interactions Log keeps a searchable history of alerts and setting changes to the thermostat to determine if there is a system malfunction or if the issue was caused by user error - Saves time in troubleshooting and points the technician in the right direction
Performance Logs keep a history of heating and cooling performance - The performance log includes Minimum and Maximum Delta T, Minimum and Maximum Discharge Temperature, Minimum and Maximum Return Temperature, Minimum and Maximum Indoor Temperature/Humidity, Minimum and Maximum Outdoor Temperature/Humidity and Run Time - Quickly determine if the system is performing as expected and reduces service time on the job
USB port for transferring Installer Setup, Customizable Reminders, Custom Events and Holidays to multiple thermostats - USB port for adding the dealer's full color business logo on the screen
3 assignable outputs to control humidification, dehumidification, ventilation and a stage of heating or cooling - 4 assignable inputs on the Equipment Interface Module (not included) can be used with wired outdoor, indoor or discharge sensors, occupancy sensor for remote setback and dry contact devices to trip pre-packaged or custom alerts such as a full drain pan or water leak
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Power
Connection to System
Type
Programmability
Stages
Heat Pump Compatible
Height (inches)
Width (inches)
Heating Temperature Min (Fahrenheit)
Heating Temperature Max (Fahrenheit)
Cooling Temperature Min (Fahrenheit)
Cooling Temperature Max (Fahrenheit)
User Interface
Terminal Designation
Humidistat

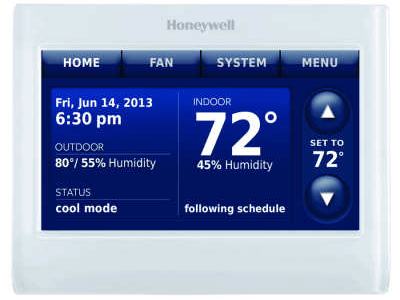

Honeywell THX9421R-5021WW/U Prestige IAQ Programmable Heating and Cooling Thermostat with Color Touchscreen - White
