Overview

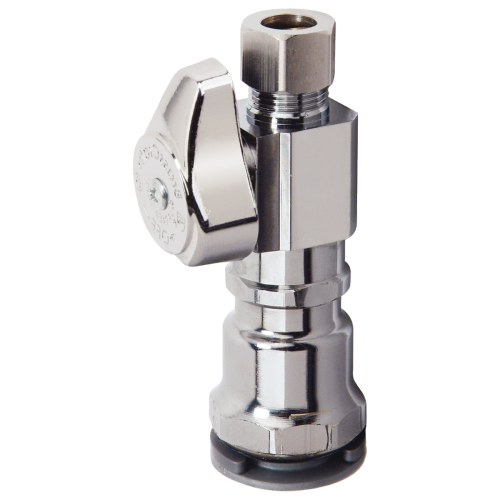

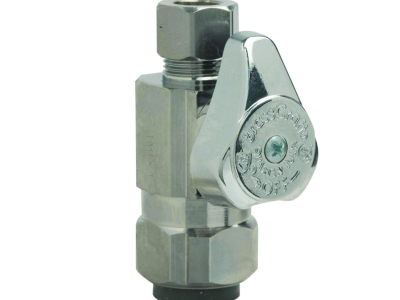

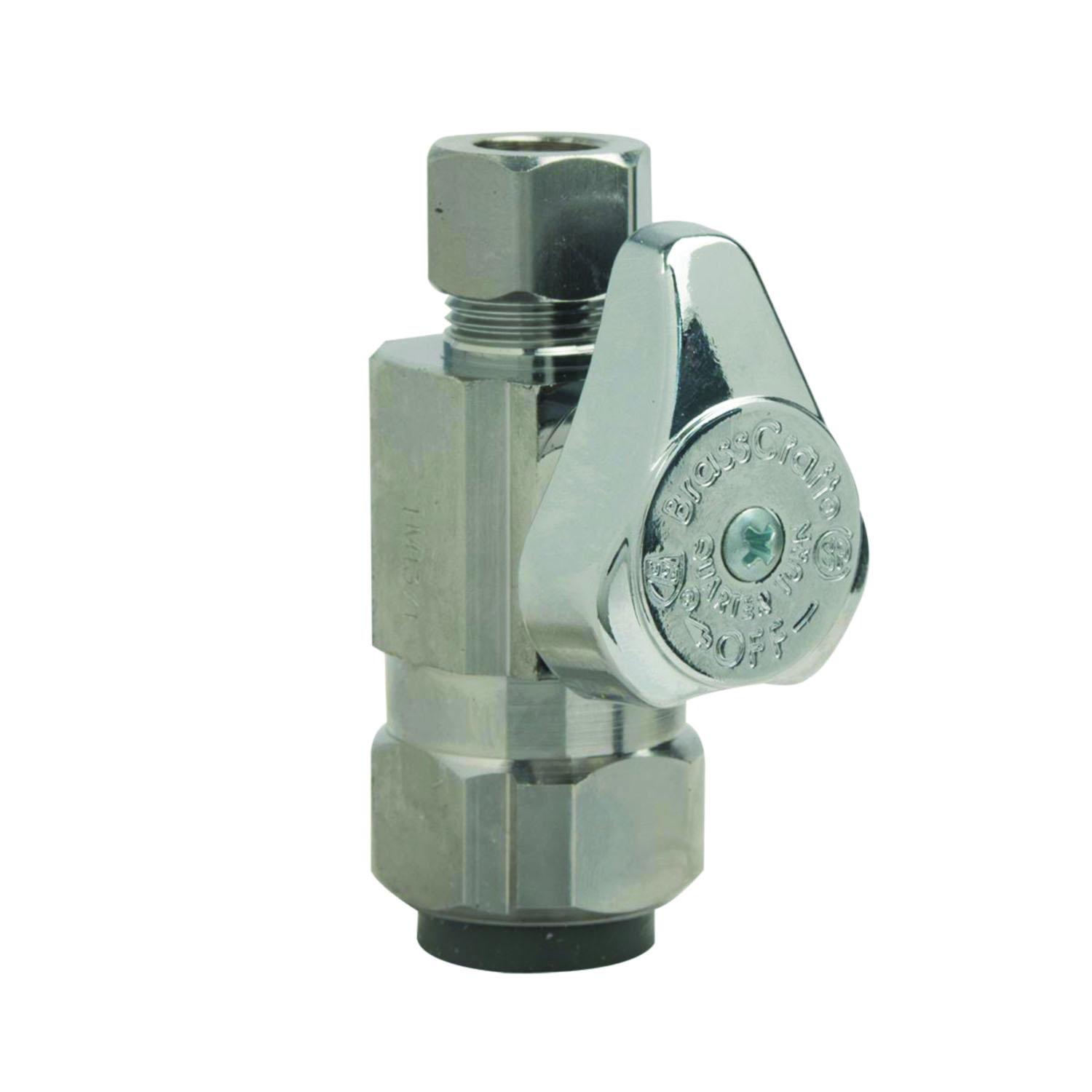

BrassCraft 1/2 in. Nominal Push Connect Inlet x 3/8 in. OD Compression Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90 degree turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

Features

• 1-piece body construction provides strength, durability and long-lasting performance
• 1/2 in. Nom Push Connect x 3/8 in. OD Comp
• Compatible with copper, PEX or CPVC tubing
• For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115 Degrees F. For those applications, use our KT(TM) series ball stops.
• Smooth, quarter-turn operation, on/off flow control with a 90 degree turn of the handle
• 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
• Easy-to-remove handle protects against accidental operation during rough-ins
• Installation ready: requires no special tools, soldering ot glue for a watertight seal
• 100 % leak tested
• Temperature rating: 40 Degrees to 140 Degrees F
• Pressure rating: 125 psi maximum
• No-lead certified
• IAPMO and CSA listed to ASME A112.18.1/CSA B125.1
• Designed, machined and assembled in the USA
