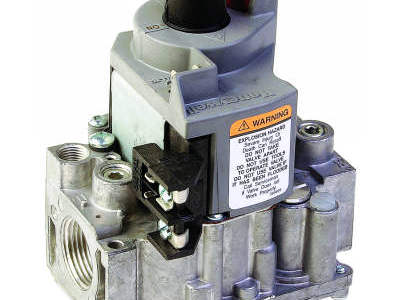

Honeywell VR8300C-4506/U 3/4 inch x 3/4 inch Standing Pilot Step Opening Natural Gas Valve
Item SKU - VR8300C4506/U by Honeywell
EDP - 697674
Please Login for Pricing
Product Description
Old Number VR8300C-4506
Includes safety shutoff, manual valve, two automatic operators, pressure regulator, pilot adjustment, and two 3/4 inch x 1/2 inch bushings - LP conversion kit is not available
Single stage - 24 Volt - Step Opening - 200,000 BTU per hour at 1 inch water column - 30,000 BTU per hour minimum - 300,000 BTU per hour maximum
Easy to install, adjust and service; all adjustments and connections are accessible from top of control
Provides two automatic valves: Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends - Diaphragm operated second automatic valve opens under control of regulator and closes if gas or power supply is interrupted
Meets codes requiring dual safety shutoff - Complete safety shutoff on pilot flame failure - LITE-RITE (OFF-PILOT-ON) lighting sequence
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Approximate Weight (pounds)
Honeywell VR8300C-4506/U 3/4 inch x 3/4 inch Standing Pilot Step Opening Natural Gas Valve
Item SKU - VR8300C4506/U by Honeywell (EDP 697674)
Stock / Price Information
Please Login for Pricing
Product Description
Old Number VR8300C-4506
Includes safety shutoff, manual valve, two automatic operators, pressure regulator, pilot adjustment, and two 3/4 inch x 1/2 inch bushings - LP conversion kit is not available
Single stage - 24 Volt - Step Opening - 200,000 BTU per hour at 1 inch water column - 30,000 BTU per hour minimum - 300,000 BTU per hour maximum
Easy to install, adjust and service; all adjustments and connections are accessible from top of control
Provides two automatic valves: Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends - Diaphragm operated second automatic valve opens under control of regulator and closes if gas or power supply is interrupted
Meets codes requiring dual safety shutoff - Complete safety shutoff on pilot flame failure - LITE-RITE (OFF-PILOT-ON) lighting sequence
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
| Approximate Weight (pounds) |
|
