Overview

Hart and Cooley model TLC All Fuel Chimney offers current technology in a factory built chimney design by providing superior performance, durability and safety. Model TLC is extremely corrosion resistant. Both the inner liner and outer casings are constructed of type 304 stainless steel. Embossed couplers do not allow moisture to penetrate the chimney's outer wall. Sections simply twist lock together and are secured with Locking Bands. The Model TLC product line features deluxe chimney support components that will enhance any installation. Black trims are used to embellish the chimney support component parts that may be installed inside the home. All Model TLC supports are designed to carry four times the UL listed weight of the listed height. Model TLC is safety tested and listed to applicable UL safety standards for chimneys serving solid fuel and liquid fuel appliances. This includes UL 103. This chimney system is designed for use on appliances that use solid, liquid or gas fuels under natural draft conditions.

Features

• All fuel for use with oil, gas or wood burning appliances

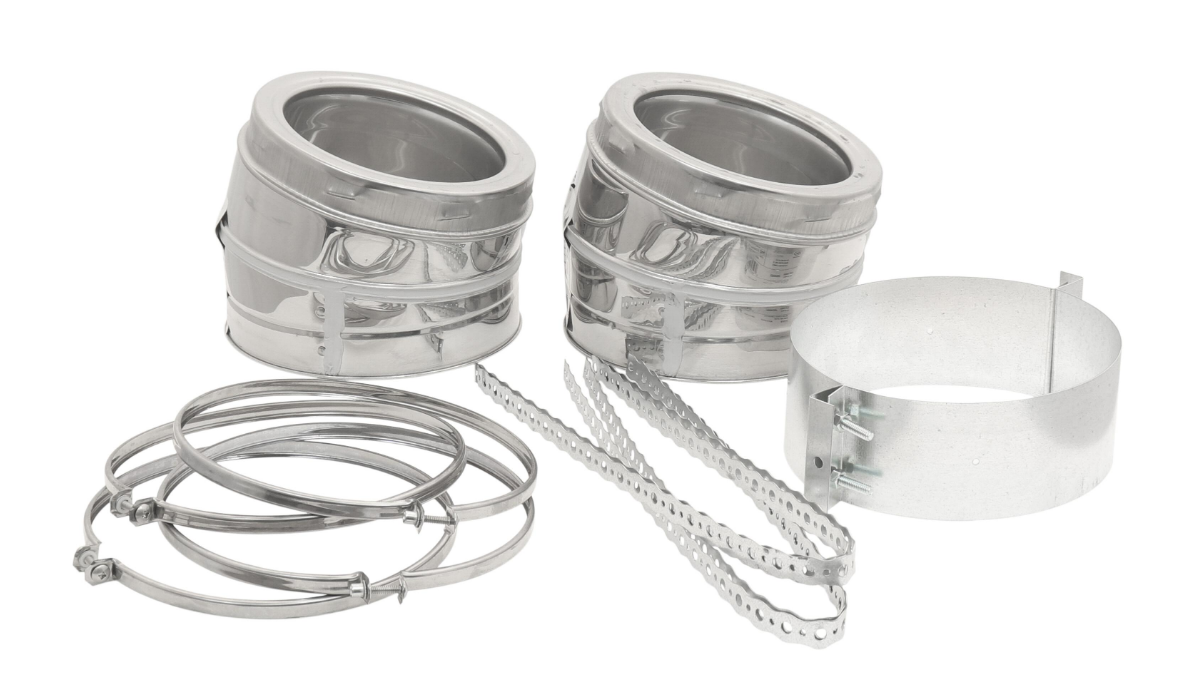

• Includes: 2 - 30 Degree elbows, 2 - locking bands, 1 - elbow support, all hardware
• The outside diameter is 2" larger than the inside diameter
• This elbow kit is used when an offset is required
• Locking bands must be used on all elbows
• Maximum of 6' is allowable between offsets
• The elbow is fully insulated and can be used with the same 2" clearance as vent pipe lengths
• Elbow does not have twist lock ridges, which allows the elbow to be rotated to attain optimum positioning offset
• Elbow support must be used with all offset installations and will support 15' of vent pipe
• The elbow kit may not be used outdoors
