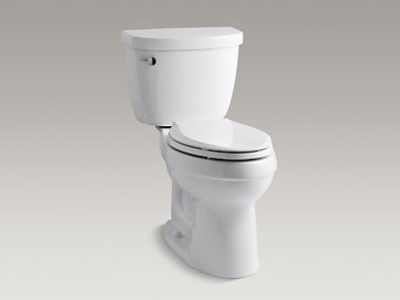

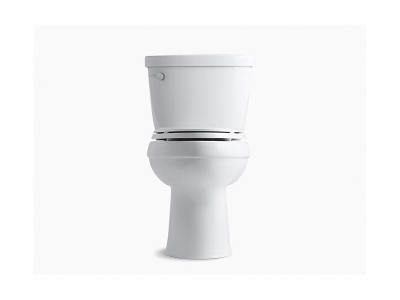

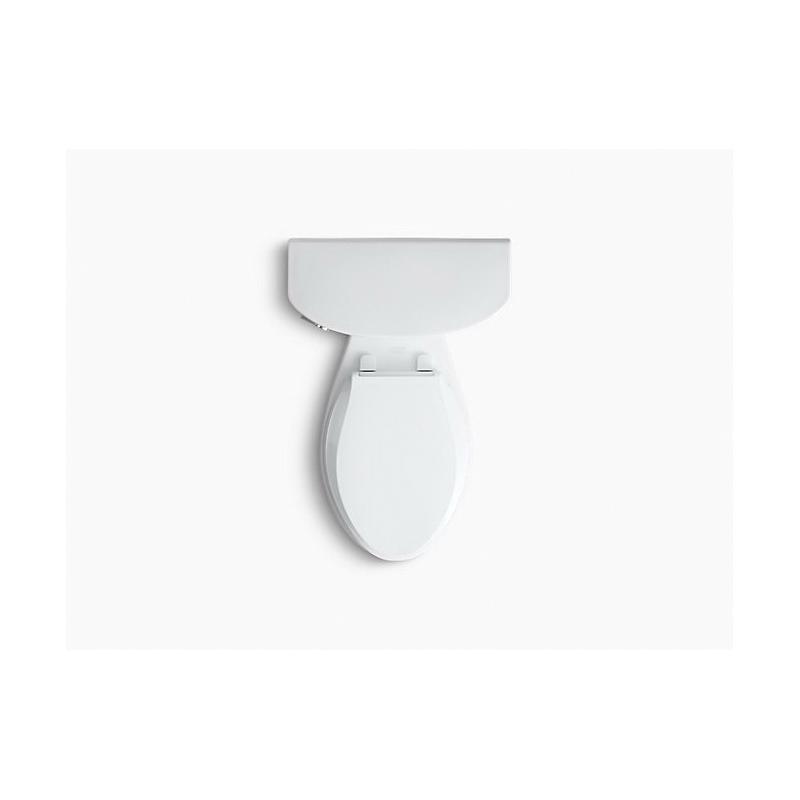

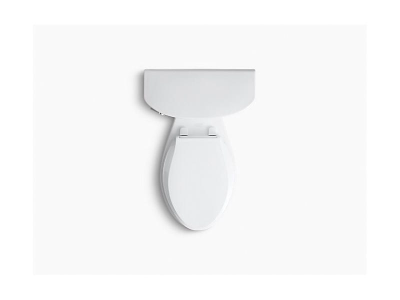

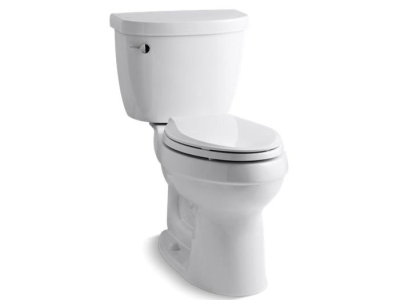

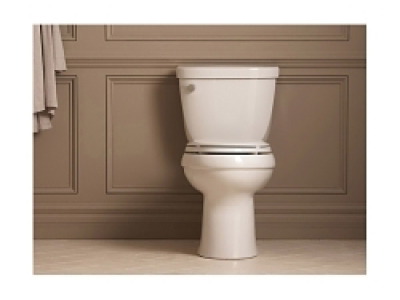

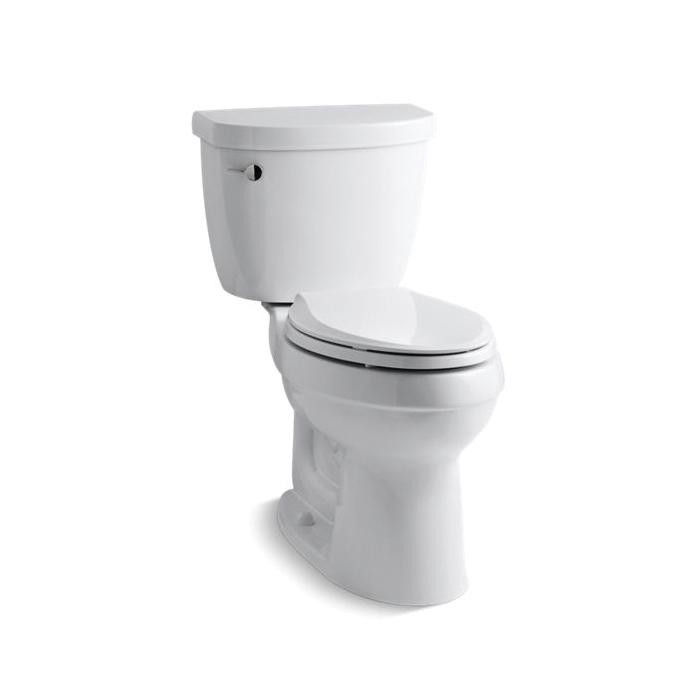

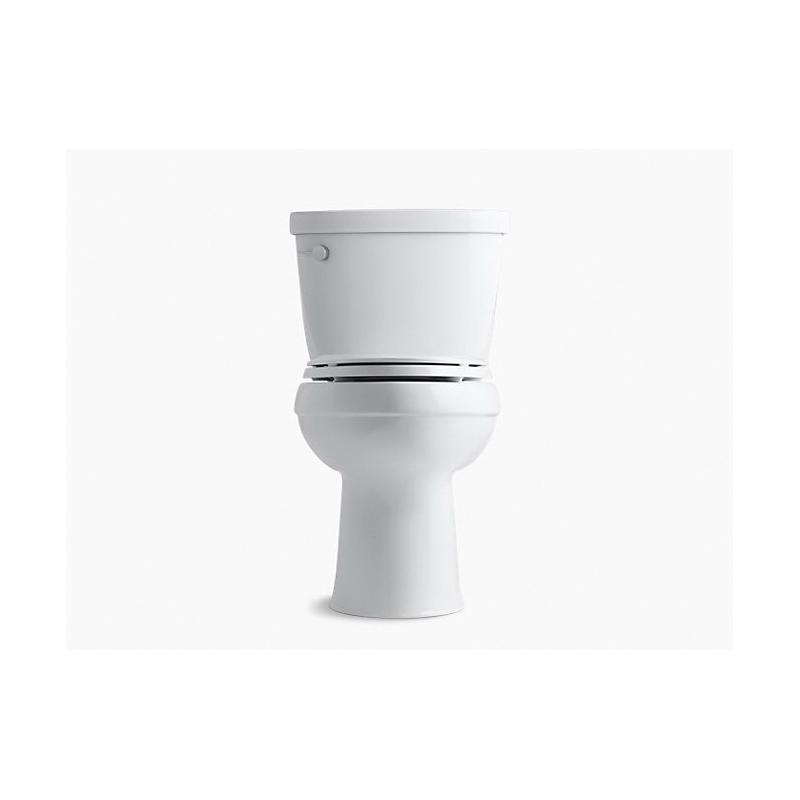

Kohler K-3609-0 Cimarron Comfort Height Two-Piece Elongated Toilet

Item SKU - K-3609-0 by Kohler
EDP - 905644


Please Login for Pricing

Product Description

Cimarron(R)

This WaterSense(R)-labeled high-efficiency toilet combines water conservation with the versatile style of the Cimarron collection. A 1.28-gallon flush provides significant water savings of up to 16,500 gallons per year, compared to a 3.5-gallon toilet, without sacrificing performance. This toilet features innovative AquaPiston technology, a patented flush engine that delivers a fast, powerful, and virtually plug-free flush. An elongated bowl, positioned at the height of a standard chair, offers comfort and ease of use.

Features

  • Two-piece toilet.
  • Elongated bowl offers added room and comfort.
  • Comfort Height(R) feature offers chair-height seating that makes sitting down and standing up easier for most adults.
  • 1.28 gallons per flush (GPF).
  • Left-hand Polished Chrome trip lever included.
  • Combination consists of the K-4309 bowl and the K-4421 tank.
  • Coordinates with other products in the Cimarron collection.
  • 12" rough-in
  • Elongated bowl

Technology

  • Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing.
  • AquaPiston canister allows water to flow into the bowl from all sides (360 degrees), increasing the power and effectiveness of the flush.

Installation

  • Standard 12-inch rough-in.
  • DryLock(TM) System saves installation time and helps prevent water leakage.
  • Seat and supply line not included.

Water Conservation & Rebates

  • WaterSense(R) toilets meet strict EPA flushing guidelines, including using at least 20 percent less water than 1.6-gallon toilets.
  • Eligible for consumer rebates in some municipalities.

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Number of Pieces
2
Overall Height (inches)
30.75
Overall Width (inches)
17.625
Overall Length (inches)
28.75
Shape
Elongated
Bowl Color
White
Nominal Height
Comfort Height
Includes Seat
No
Mount
Floor
Bowl Height (inches)
16.5
Bowl Width (inches)
15.4375
Bowl Length (inches)
28.6875
Water Line Rough Height above Ground (inches)
5
Water Line Rough Distance Off Center(inches)
5
Concealed Trapway
No
Skirted Trapway
No
ADA
When installed per local and federal ADA code
Outlet Location
Floor
Water Spot/Surface (inches)
10-1/2" x 7-7/8"
Trapway Size (inches)
2.125
GPF
1.28
Tank Color
White
Flush Technology
AquaPiston
Wall Mount
No
WaterSense
Yes
Tank Height (inches)
13.5625
Tank Width (inches)
17.625
Tank Length (inches)
8
Material
Vitreous China
Requires Electrical
No
Includes Tank Lever/Flush Actuator
Yes
Antimicrobial Microglaze Finish
No
Rough In
12
Insulated
No
Tank Cover Locks
No
Tank Lever Location
Left
Warranty
Limited 1-Year
