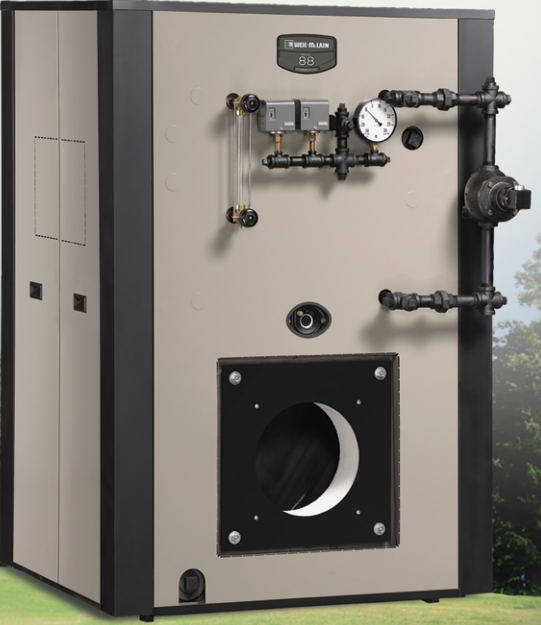

Weil McLain BL-488-S Oil Steam Boiler with Carlin Burner and Mounting Plate
Item SKU - 115626 by P&H Kit
EDP - 115626
Please Login for Pricing
Product Description
Overview
Weil McLain Commercial Oil Boilers provide rugged, reliable and low maintenance heating solutions for light commercial through large institutional applications. Modular jacketing and toolless jacket panels for easy access. 3 inches of insulation (except on front panel) to minimize jacket heat loss and maximize thermal efficiency. The jacket has part number labels on all components for easy assembly. 1/4 inch thick steel cleanout plates with re-usable coated woven fiberglass gasket.
Features
- ASME 80 PSI rated cast iron sections
- Two 5 inch female supply tappings - One 6 inch female return tapping
- No tankless coil section - tankless cannot be added
- Carlin 702-CRD oil burner
- Cast iron flue collar with built in breaching damper
- Observation ports on front and back sections
- Includes a flue brush
- Low limit and high limit pressure controls
- Steam pressure gauge siphon, gauge cocks, gauge glass and guards
Documentation
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Type
Heat Exchanger Material
BTU Input
BTU Output
Domestic Hot Water
Vent Type
Building Type
Length (inches)
Width (inches)
Height of Boiler (inches)
Vent Material
Supply
Return
Square Feet of Steam
Vent Size (inches)
Weight (pounds)
Net BTU
