Overview

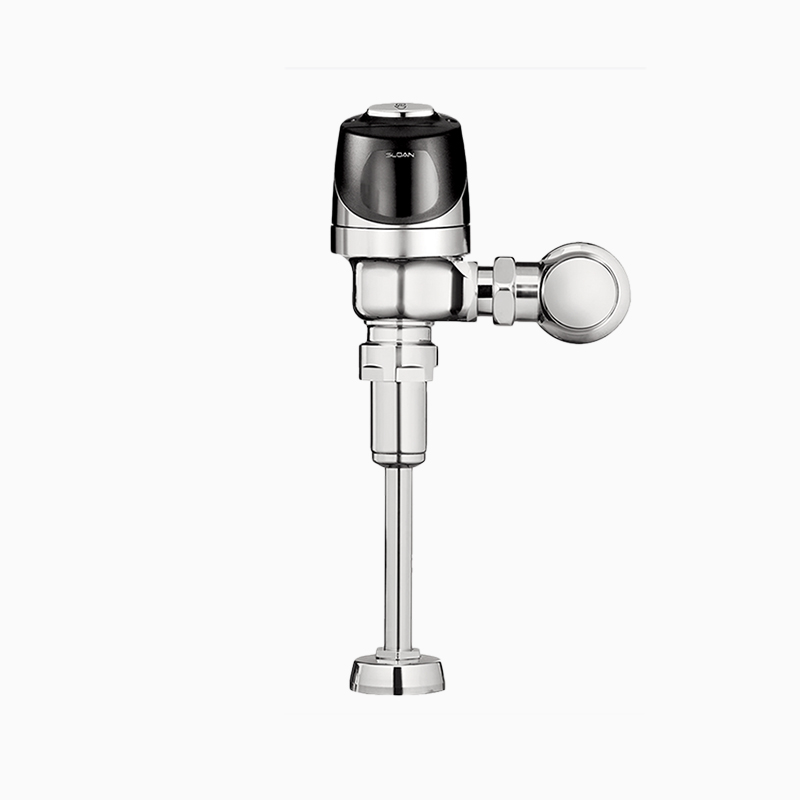

Quiet, exposed, diaphragm type, chrome plated urinal flushometer for either left or right hand suplly with the following features:

Features

• Handle packing, main seat, stop seat, and vacuum breaker molded from PERMEX(R) Rubber Compound for Chloramine resistance
• Flex tube diaphragm designed for improved life and reduced maintenace
• PERMEX(R) Synthetic Rubber diaphragm with dual filtered fixed bypass
• Spud coupling and flange for 3/4" top spud
• Sweat solder adapter with cover tube and cast set screw wall flange
• Initial set-up range indicator light (first 10 minutes)
• "Low Battery" flashing LED
• Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
• Latching solenoid operator
• Fixed metering bypass and no external volume adjustment to ensure water conservation
• Engineered metal cover with replaceable lens window
• Four (4) size AA alkaline batteries inlcuded: Duracel(R) with DURALOCK power preserve technology(TM)-guaranteed for up to 10 years in storage
• ADA compliant battery powered infrared sensor for automatic "Hands-free" operation
• Courtesy Flush(R) Override button
• Flush accuracy controlled by CID(R) Technology
• 3/4" I.P.S Screwdriver Bak-Chek(R) Angle Stop with vandal resistant stop cap
