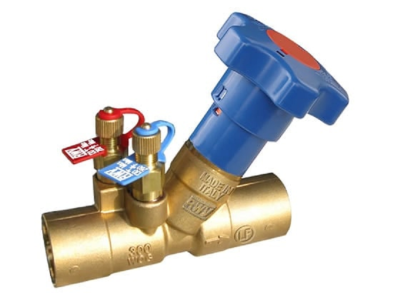

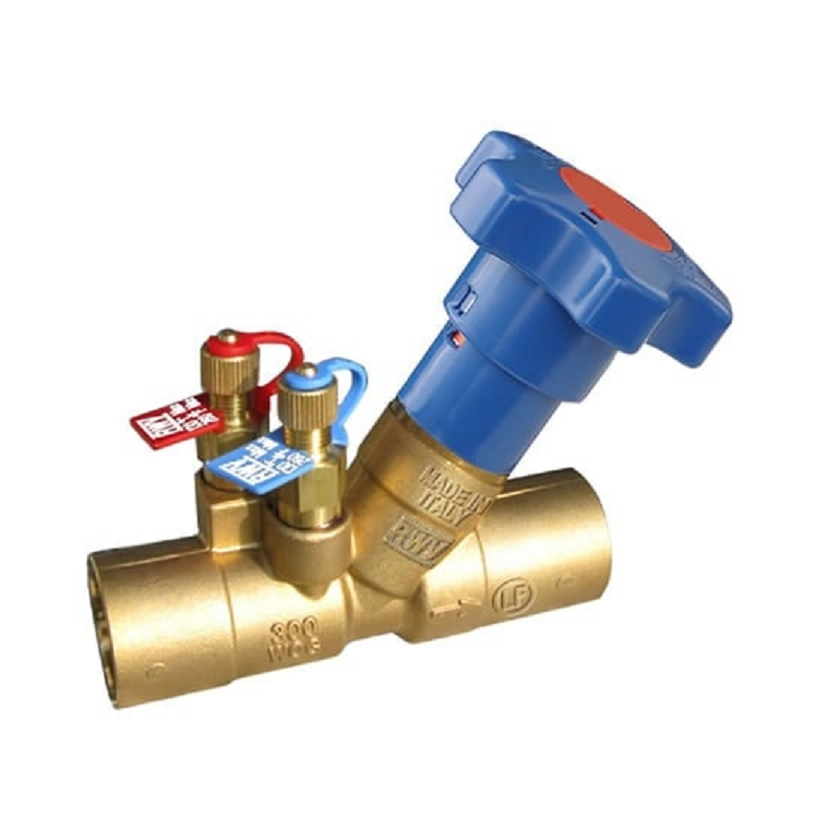

Red and White 9519AB-1 Lead Free Brass 1 inch Sweat x 1 inch Sweat Static Balancing Valve

Item SKU - 9519AB 1 by Red and White
EDP - 1022107


Please Login for Pricing

Product Description

Fixed orifice double regulating globe type valve - Venturi insert - Positive shutoff with memory stop - Multi turn adjustment (four turns minimum) - 300# WOG - Working coditions from 15 degrees to 260 degrees - Below 32 degrees, antifreeze must be added to the water - Over 212 degrees, anti-boiling fluid must be added to the water

Documentation

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Approximate Height (inches)
4.82
Approximate Length (inches)
1.45
Approximate Weight (pounds)
1.55
Approximate Width (inches)
4.57
