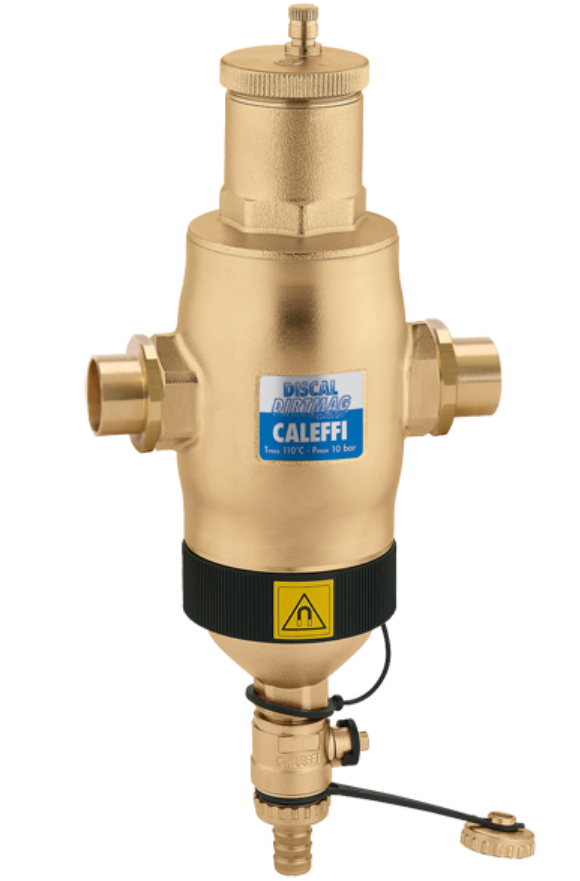

Caleffi 546116A DiscalDirtMag 1 inch Male Brass Micro-Bubble Type Air and Magnetic Dirt Separator

Item SKU - 546116A by Caleffi
EDP - 1051673


Please Login for Pricing

Product Description

Brass body and dirt separation chamber - Brass automatic air vent - Brass drain valve on bottom - Glass reinforced nylon internal element - One neodymium rare earth magnet - 150 PSI maximum working pressure - 32 degrees to 250 degrees maximum working temperature range - 100 percent air removal to micro-bubble level - Up to .2 mil particle separation - For use with water and up to 50 percent maximum glycol antifreeze

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Approximate Height (inches)
12.75
Approximate Weight (pounds)
8.50
Approximate Width (inches)
7.375
Connection Type
Male IPS
Material
Brass
Size
1
