Overview

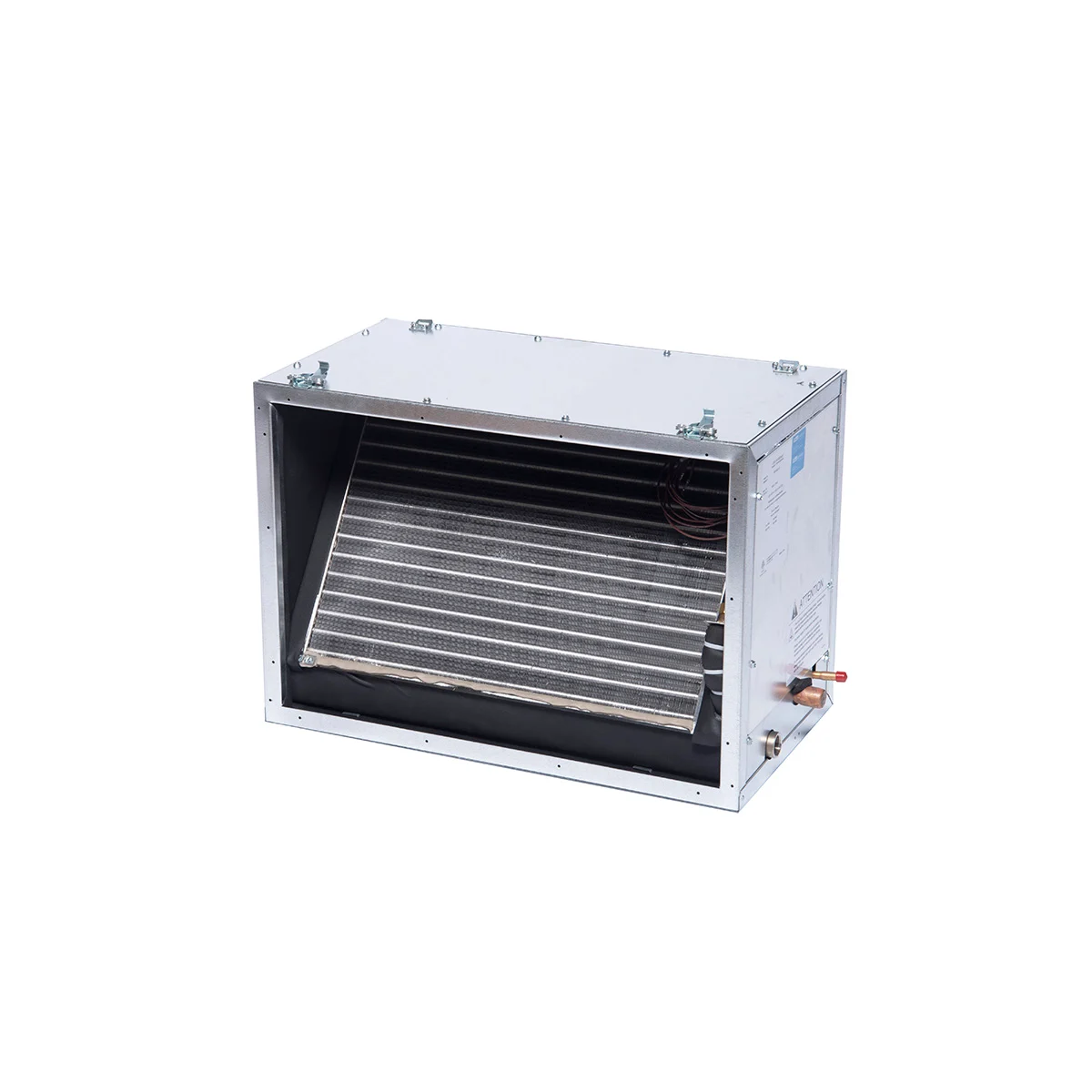

This is the 2.5 to 3 ton left hand 4 row refrigerant coil module with R410A TXV and stainless steel primary drain pan. All Unico refrigerant coils can be used for both heat pump and A/C only applications. To verify which Unico coil matches your specific outdoor unit for optimal performance and operation, visit ahridirectory.com.

Features

• Slant coil for M2430, M3036 and M3642
• Internally mounted TXV easily accessible, uses chatleff thread connections
• Standard Unico System "latch" method
• High Efficiency heat transfer surface
• Two bi-metal switches to prevent freezing
• Stainless Steel Drain Pan
• Four row deep refrigerant coil for cooling only, six rows deep for heat pump, allows for greater temperature drop over the coil
• Compatible for use with R22/R-407C and R410A refrigerants
• Heat pump coil has a 24v relay switch that bypasses anti-frost mode during the heating cycle
