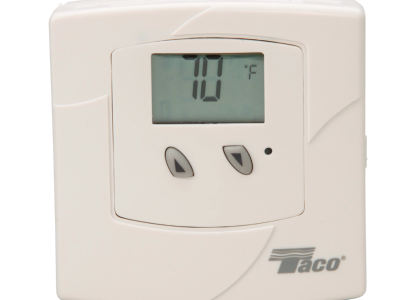

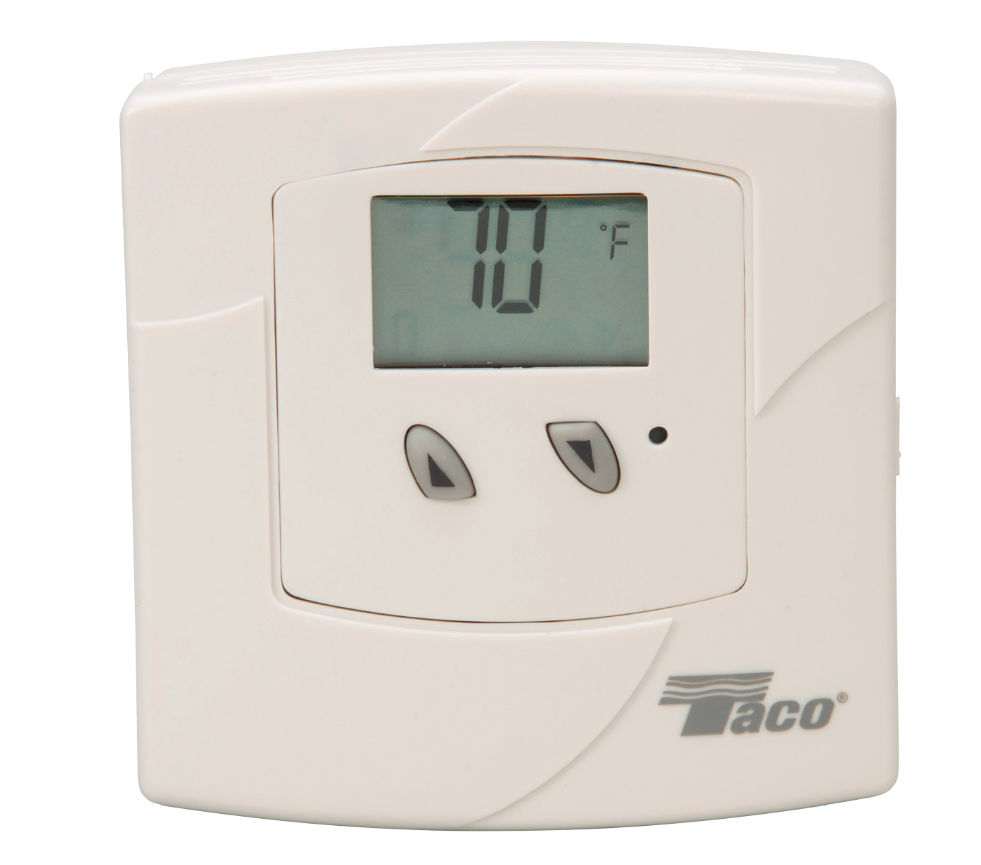

Taco 568-22 Square Non-Programmable Heating Thermostat - Off White

Item SKU - 568-22 by Taco
EDP - 114722


Please Login for Pricing

Product Description

Battery operated and included - Uniform equipment compatible with dry contact switching (Normally open & Normally closed) - LCD Digital temperature display shows current or set temperature - Simple installation and functionality - Icons for heating call & low battery The Taco 568 is an extremely versatile digital thermostat. It is battery operated, with dry contact switching and is compatible with most types of hot water heating systems. It can operate conventional heating systems that require a contact closure when room temperature is below set temperature. It can also operate some failsafe systems that require a contact closure when room temperature is above set temperature.

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Power
24 Volt
Connection to System
Wired
Type
Non-Programmable
Stages
1 Heat
Heat Pump Compatible
No
Height (inches)
3.25
Width (inches)
3.25
Heating Temperature Min (Fahrenheit)
40
Heating Temperature Max (Fahrenheit)
95
User Interface
Keypad
Terminal Designation
R
W
Humidistat
None
Approximate Weight (pounds)
.35

Taco 568-22 Square Non-Programmable Heating Thermostat - Off White

Item SKU - 568-22 by Taco (EDP 114722)

Stock / Price Information

Please Login for Pricing

Product Description

Battery operated and included - Uniform equipment compatible with dry contact switching (Normally open & Normally closed) - LCD Digital temperature display shows current or set temperature - Simple installation and functionality - Icons for heating call & low battery The Taco 568 is an extremely versatile digital thermostat. It is battery operated, with dry contact switching and is compatible with most types of hot water heating systems. It can operate conventional heating systems that require a contact closure when room temperature is below set temperature. It can also operate some failsafe systems that require a contact closure when room temperature is above set temperature.

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Power
24 Volt
Connection to System
Wired
Type
Non-Programmable
Stages
1 Heat
Heat Pump Compatible
No
Height (inches)
3.25
Width (inches)
3.25
Heating Temperature Min (Fahrenheit)
40
Heating Temperature Max (Fahrenheit)
95
User Interface
Keypad
Terminal Designation
R
W
Humidistat
None
Approximate Weight (pounds)
.35
