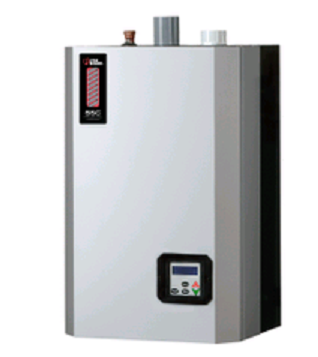

Utica SSC110003500210 UBSSC-100 Natural Gas Wall Hung Condensing Boiler less Circulator
Item SKU - SSC110003500210 by Ecr
EDP - 978592
Please Login for Pricing
Product Description
Features
- 20,000 to 100,000 BTU input - 91,000 BTU heating capacity - 95.0% AFUE - Energy Star Rated - Does not include circulator
- 2 inch or 3 inch PVC, CPVC or Polypropylene flue pipe - Includes LP conversion kit
- Stainless Steel Heat Exchanger - Electrical connections at bottom of boiler - 1-1/4 inch Supply and return connections on bottom of boiler
- Stainless steel mesh modulating burner - Intermittent direct spark ignition - Includes probe type low water cut off
- Fully removable jacket front - Includes condensate drain with built in trap - Easy programming with text display
- Wall Hung - Multiple boiler functionality - Outdoor temperature sensor included - LCD status display - Flame sensor
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Fuel Type
Natural Gas
Type
Water
Heat Exchanger Material
Stainless Steel
BTU Input
100000
BTU Output
91000
Annual Fuel Usage Efficiency (AFUE)
95.0
Domestic Hot Water
No
Vent Type
Sealed Combustion
Building Type
Residential
Length (inches)
14.75
Width (inches)
20
Height of Boiler (inches)
32
Vent Material
PolyPro
PVC/CPVC
Supply
Female Iron Pipe 1 1/4
Return
Female Iron Pipe 1 1/4
Gas Connection (inches)
1/2
Vent Size (inches)
2
3
Weight (pounds)
111
