Overview

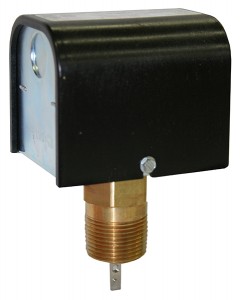

This control is an independently mounted water flow sensing device that makes or breaks an electrical circuit when flow stops or starts.

Features

• Universal design serves the widest variety of applications
• For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others
• Replacement for common flow switches from Johnson/Penn, Potter/Taco, Watts, Hydrolevel and other manufacturers
• 1" NPT
• Two electrical knock-outs allows connection from either end
• Sensitivity adjusting screw makes flow adjustment easy
• Single pole, double throw snap switch
• Hardened stainless steel bearings minimize friction
• Sealed Monel bellows
• Four stainless steel paddles included - 1", 2", 3" & 6" (25, 50, 80, & 150mm)
• Optional features
• Two SPDT switches to mkae or break two separate circuits
• Materials of construction suitable for corrosive liquids
• BSPT threads
• Minimum temperature (fluid or ambient) 32 degrees F (0 degrees C)
• Maximum temperature 300 degrees F (149 degrees C)
• Maximum pressure 160 PSI (11.3 kg/cm^2)
