Watts A2C-WB-M1 0004646 IntelliFlow 1/2 inch Sweat 120 Volt Automatic Washing Machine Shutoff Valve with Leak Sensor and Wall Box

Item SKU - 0004649 by Watts
EDP - 708309


Please Login for Pricing

Product Description

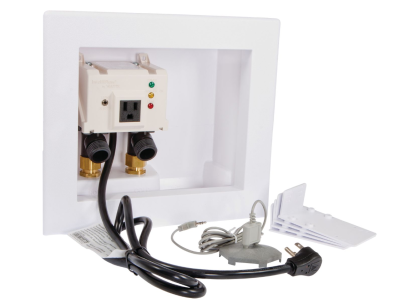

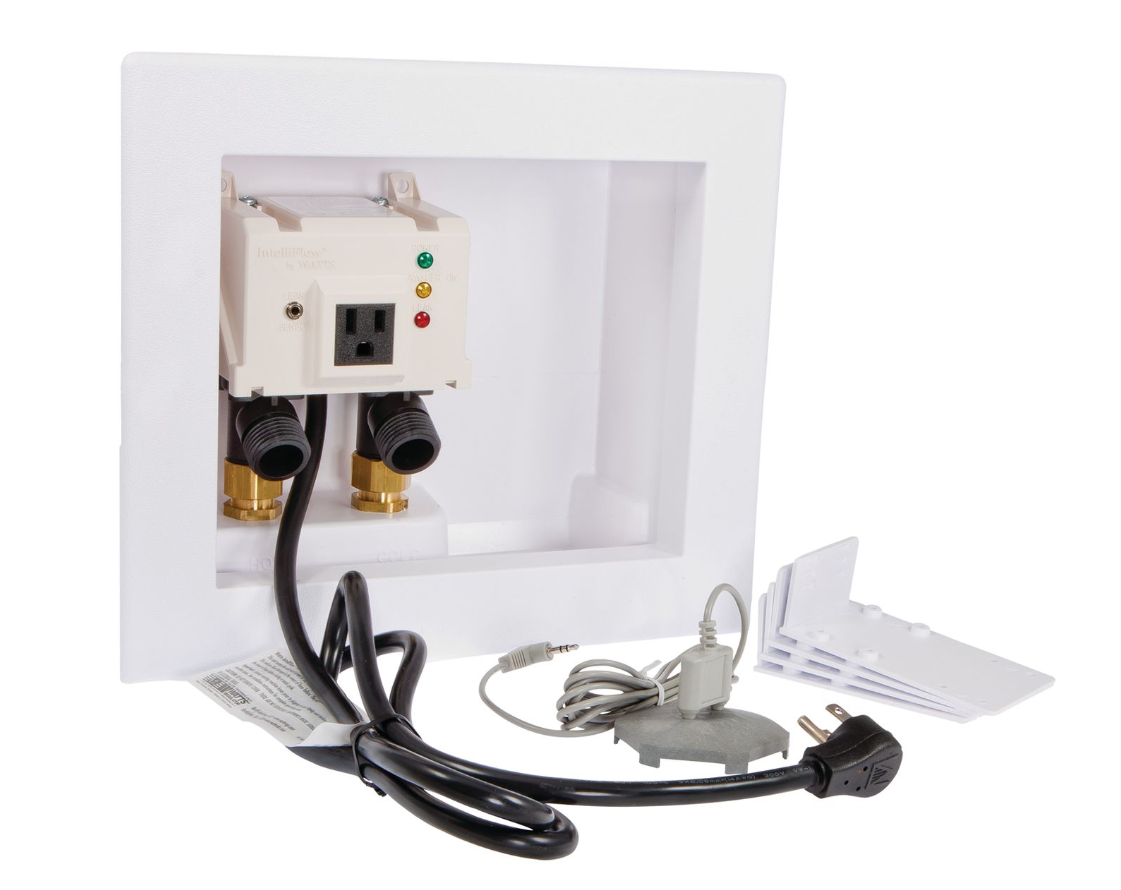

This IntelliFlow automatic washing machine shutoff valve with leak sensor is used in residential applications to protect against catastrophic water damage from a burst inlet hose connected to a washing machine in use or unattended. It senses when the washing machine is on or off, and then opens or closes the hot and cold inlet valves as needed to allow or prevent water from flowing to the washer. If it detects a leak, current flow to both the hot and cold water valves are immediately interrupted and closed. This device consists of an electrical three-prong outlet to receive a washing machine power cable, leak sensor, power cord, and a replaceable internal strainer screen. It also comes equipped with 1/2 inch sweat inlet adapters for both hot and cold water supply tubing, a wall mounting box, and two mounting tabs used to secure the valve to the wall for surface mount applications. The maximum pressure is 150 psi.

Specifications

These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).

Includes Box
Yes
Connection Type
1/2 Copper Hub
Outlet Size
2 inch
Includes Water Hammer Arresters
No
Separate Boxes
No
Height (inches)
10.15625
Width (inches)
11.75
Depth (inches)
3.0625
Fire Rated
No
Approximate Weight (pounds)
4.5
