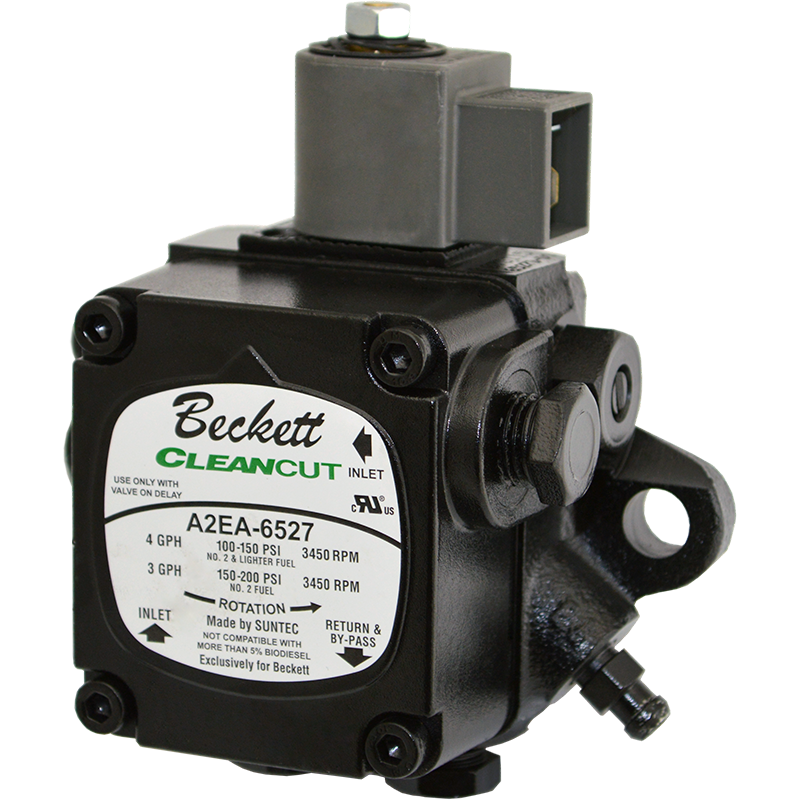

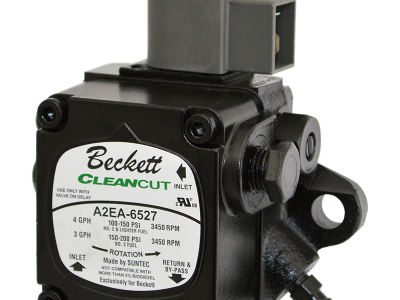

Beckett 2184404U CleanCut Oil Pump
Item SKU - PF20322U by Beckett
EDP - 678090
Product Description
Features
- The CleanCut Solenoid Advantage
- The new Beckett CleanCut Pump - developed as a joint effort with Suntec Industries - combines the "clean burning" benefits of a solenoid valve with the hefty lift capabilities of traditional American pumps
- Cleaner Operation
- The solenoid valve cuts oil flow almost instantly when power is cut to the motor, eliminating coasting stops that can cause soot formation on shut-down. Pre-purge type controls work hand-in-hand with the CleanCut pump to establish airflow and bring pump pressure up to full operating levels before light-off. This ensures smoother and cleaner light-offs
- More Reliable
- There are fewer moving parts, compared to conventional pumps and fewer troublesome oil fittings to cause problems. In addition, all of the moving parts in the CleanCut have been in use for years either in the US or in Europe
- Reduced Load on Motor
- Configurations using an external valve deadhead pressure against the valve during start-up, increasing load on the motor. The CleanCut pump reduces demands on the motor during start-up by allowing oil to freely bypass the pump's piston
- Higher Capacity
- The unique design of the CleanCut pump delivers up to 4 gallons per hour at 100 PSI. (Note that applications above 3 gph will require an additional valve due to UL requirements)
- Leak-Through Protection
- The CleanCut pump utilizes the same piston valve used in traditional pumps, to provide the same level or protection from leak-through in gravity feed situations
Specifications
These specifications are subject to change by the manufacturer, and are only approximate. For precise specifications, please call our inside sales department at 860-221-SALE (860-221-7253).
Stages
1
Clean Cut
Yes
RPM
3450
GPH
3
Rotation
Right Hand
PSI Min
100
PSI Max
200
Warranty
Limited 3-Year
