Old Number UHLL-HM3617JA

Supply air 10-5/16 inch front to back and 16 inches wide - Return air 19-3/4 inches front to back and 15-7/8 inches wide - No filter rack

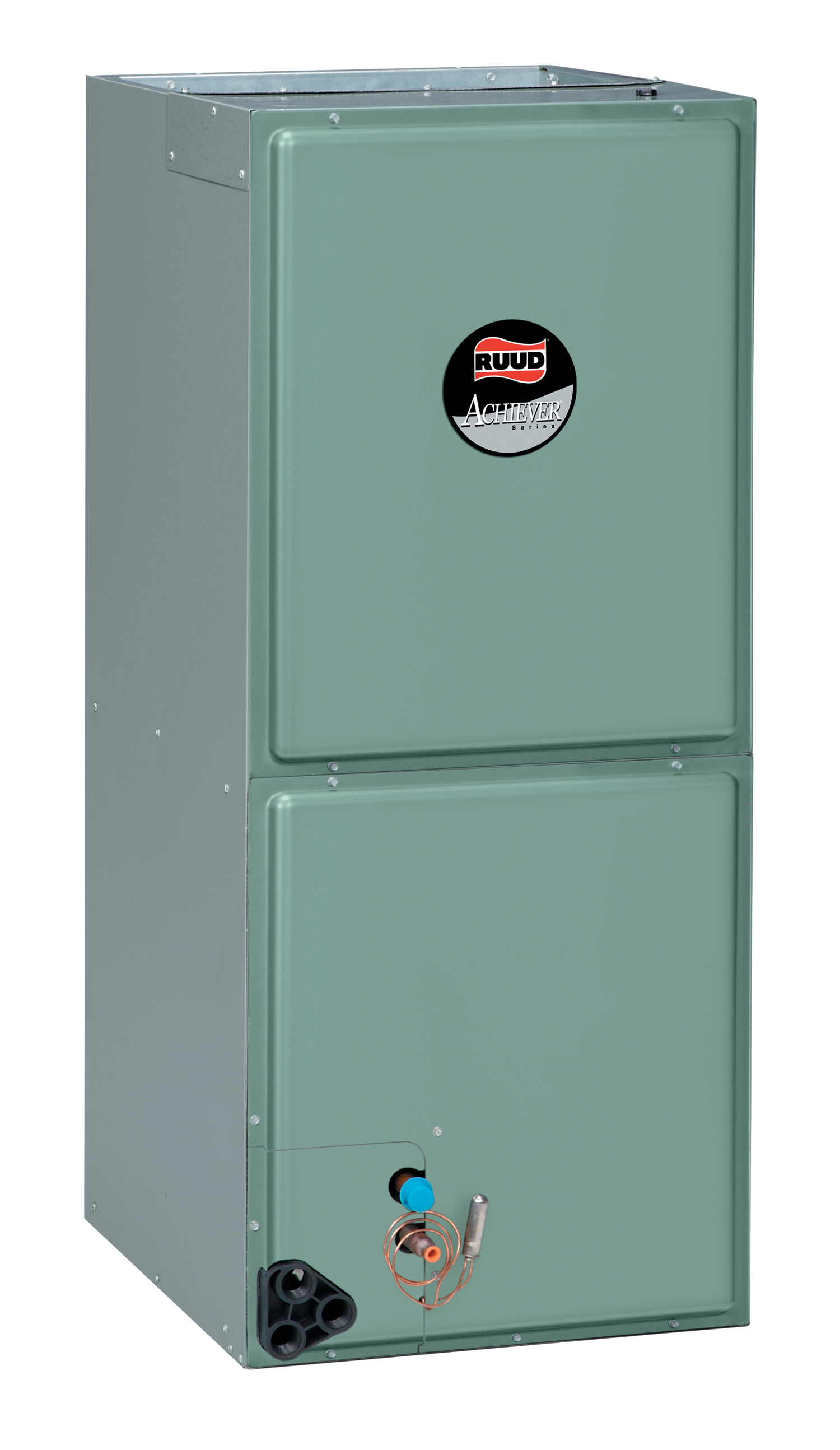

Versatile 4 way convertible design for upflow, downflow, horizontal left and horizontal right applications - Factory installed high efficiency indoor coil

Sturdy construction with 1 inch of reinforced foil faced jacket insulation for excellent thermal and sound insulation

Four leg blower motor mount - Blower housing with controls, motor and blower use a slide out design for service and maintenance convenience

Expansion valve on indoor coil provides for operation with air conditioning or heat pump using the same coil - Coils are constructed of aluminum fins bonded to internally grooved copper tubing

Molded polymer corrosion resistant condensate drain pan is provided on all indoor coils - Supply duct flanges provided as standard on air handler cabinet

Provisions for field electrical and other connections available from either side or top of the air handler cabinet

Connection point for high voltage wiring is inside the air handler cabinet - Low voltage connection is made on the outside of the air handler cabinet

Concentric knockouts are provided for power connection to cabinet - Installer may pull desired hole size up to 2 inches for 1-1/2 inch conduit

Front refrigerant and drain connections
