Overview

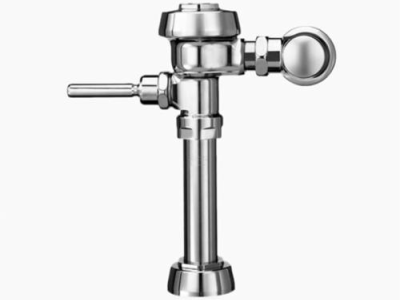

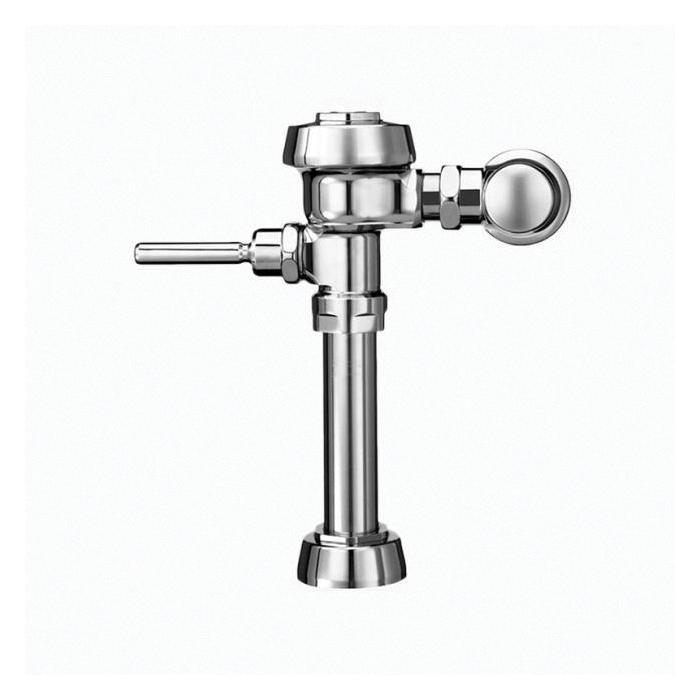

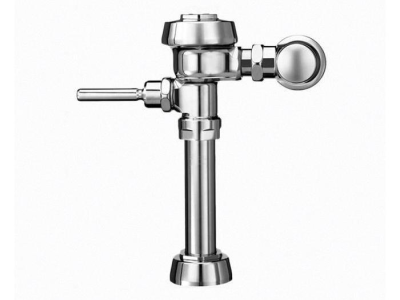

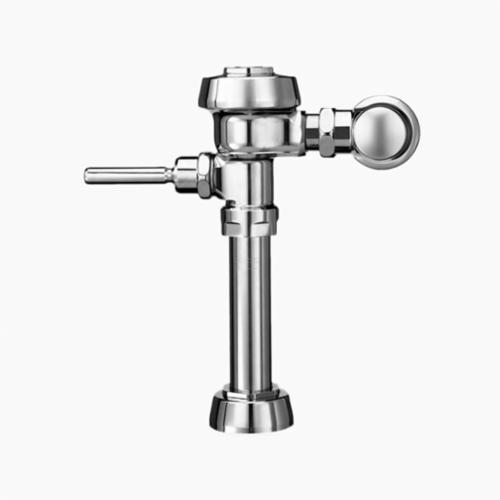

The Royal(R) Flushometer, which was the very first flush valve to hit the market more than 100 years ago, continues to reliably serve commercial customers today. This manual, exposed urinal, diaphragm model flushometer provides savings on water usage without giving up performace advantages. Features such as accurate flush delivery, quiet performance and durable components affirm the Royal as the true leader in flushometer design.

Features

• PERMAX(R) Synthetic rubber diaphragm with dual filtered fixed bypass
• ADA Compliant metal oscillating non-hold-open handle with triple seal handle packing
• 1" I.P.S. Screwdriver Bak-Chek(R) angle stop with free spinning vandal resistant stop cap
• Adjustable tailpiece
• High back pressure vacuum breaker flush connection with one-piece bottom hex coupling nut
• Spud coupling and flange for 1-1/2" top spud
• Sweat solder adapter with cover tube & cast wall flange with set screw
• High copper, low zinc brass castings for dezincification resistance
• Non-hold-open handle, fixed metering bypass and no external volume adjustment to ensure water conservation
• Flush accuracy controlled by CID technology
• Diaphragm, handle packing, stop seat and vacuum breaker molded from PERMEX rubber compound for chloramine resistance
