Overview

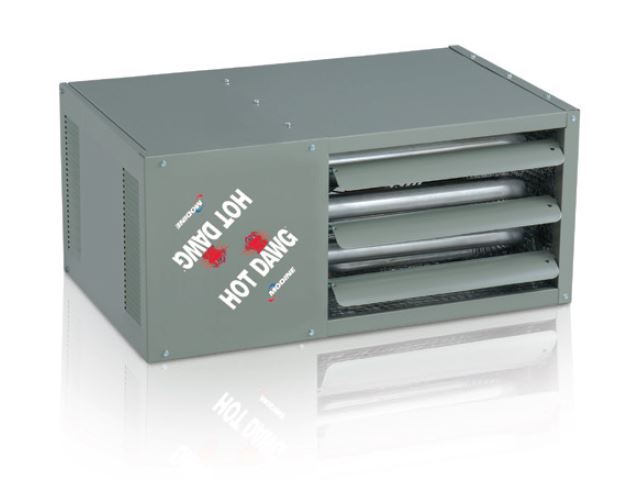

For applications requiring a low profile unit, Modine offers the Hot Dawg(R) unit heater. The Hot Dawg(R) may be installed in residential or commercial applications just one inch below the ceiling. The superior quality matched with the following features makes the Hot Dawg(R) unit heater an easy choice for a variety of applications

Features

• Hush-puppy quiet operation (57 dBA @ 5 ft)
• Right or left hand controls available on all 30-75 units. Gas, electrical and flue connections can be changed by simply fippng the hot dawg over
• Uses natural or propane gas
• Lightweight, easily installs 1" from ceiling with only two angle brackets (included on sizes 30-75, accessory for 100, 125)
• Full 10-year warranty on heat exchanger
• Standard power exhaust simplifies side-wall or roof venting with small-diameter vent pipe
• Permanently-lubricated motor for trouble-free dependability
• Controls can be either single or two-stage, direct spark ignition, 100% shut-off with continous retry
• Low-profile design and neutral color to blend in with decor
